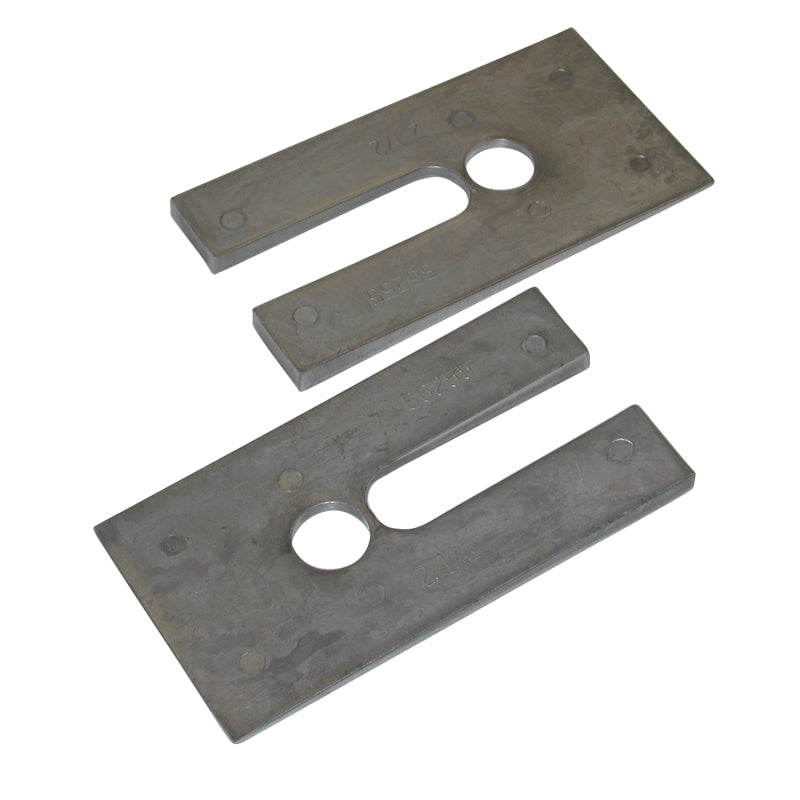

09-13 Ford F-150 SPC 86255 Pinion Angle Shims

The SPC 86255 Pinion Angle Shims are wedge-type shims that align the driveline on lowered or lifted F-150s. They reduce vibrations, noise, and wear, and improve handling and performance. They are easy to install and come with a lifetime warranty.

Top Features:

  • Change the pinion angle by +/- 2.5 degrees
  • Fit the unique two-hole design of the F-150 platform
  • Made from high-quality aluminum
  • Backed by a limited lifetime warranty from SPC

Vehicle Fitment:

  • 2009-2013 Ford F-150 (all models)
  • Engine: 3.5L V6 EcoBoost, 3.7L V6, 4.6L V8, 5.0L V8, 5.4L V8, 6.2L V8
Vendor: SPC Performance
SKU: SPC86255
Availability: 22 In Stock
$ 21.82 USD
On-Sale $ 21.82 USD
Normally
Better hurry, only 22 left in stock.

Secure Shopping with Hassle Free Returns

Free Shipping on orders over $149

10 customers are viewing this product
UPC: 082642862550
  • More Power Tuning
  • More Power Tuning

Proposition65 Warning: Cancer and Reproductive Harm

SPC 86255 09-13 Ford F-150 SPC Pinion Angle Shims

If you have lowered or lifted your 2009-2013 Ford F-150, you may need to adjust the pinion angle of your rear differential to avoid driveline vibrations and premature wear. The SPC 86255 Pinion Angle Shims are designed to fit the unique two-hole design of the F-150 platform and change the pinion angle by +/- 2.5 degrees. These shims are made from high-quality aluminum and are easy to install between the rear spring and the axle. With these shims, you can restore the proper driveline alignment and enjoy a smooth and comfortable ride.

Key Features:

  • Wedge-type shims that fit between the rear spring and the axle
  • Change the pinion angle by +/- 2.5 degrees
  • Fit the unique two-hole design of the F-150 platform
  • Made from high-quality aluminum
  • Sold as a pair

Benefits:

  • Align the driveline on vehicles that have been lowered or lifted
  • Reduce driveline vibrations and noise
  • Prevent premature wear of u-joints, bearings, and seals
  • Improve handling and performance
  • Backed by a limited lifetime warranty from SPC

Product Specs:

  • Rear adjustment range: Pinion +/- 2.50 degrees
  • Installation time: 0.5 hour per axle
  • Required: 1 kit per axle
  • Recommended tools: 64225 - Angle Gauge

Install Difficulty Level:

The installation of these shims is easy and can be done in about half an hour per axle. You will need some basic tools such as a jack, jack stands, wrenches, and a torque wrench. You will also need an angle gauge to measure the pinion angle before and after the installation. The installation instructions are included with the product and can also be found online.

Vehicle Fitment:

These shims are compatible with the following vehicles:

  • 2009-2013 Ford F-150 (all models)
  • Engine: 3.5L V6 EcoBoost, 3.7L V6, 4.6L V8, 5.0L V8, 5.4L V8, 6.2L V8
