2024+ Ford F-150 and Raptor 3.5L EcoBoost Full-Race P0549A-A Upper Shutter Motor Extension Harness

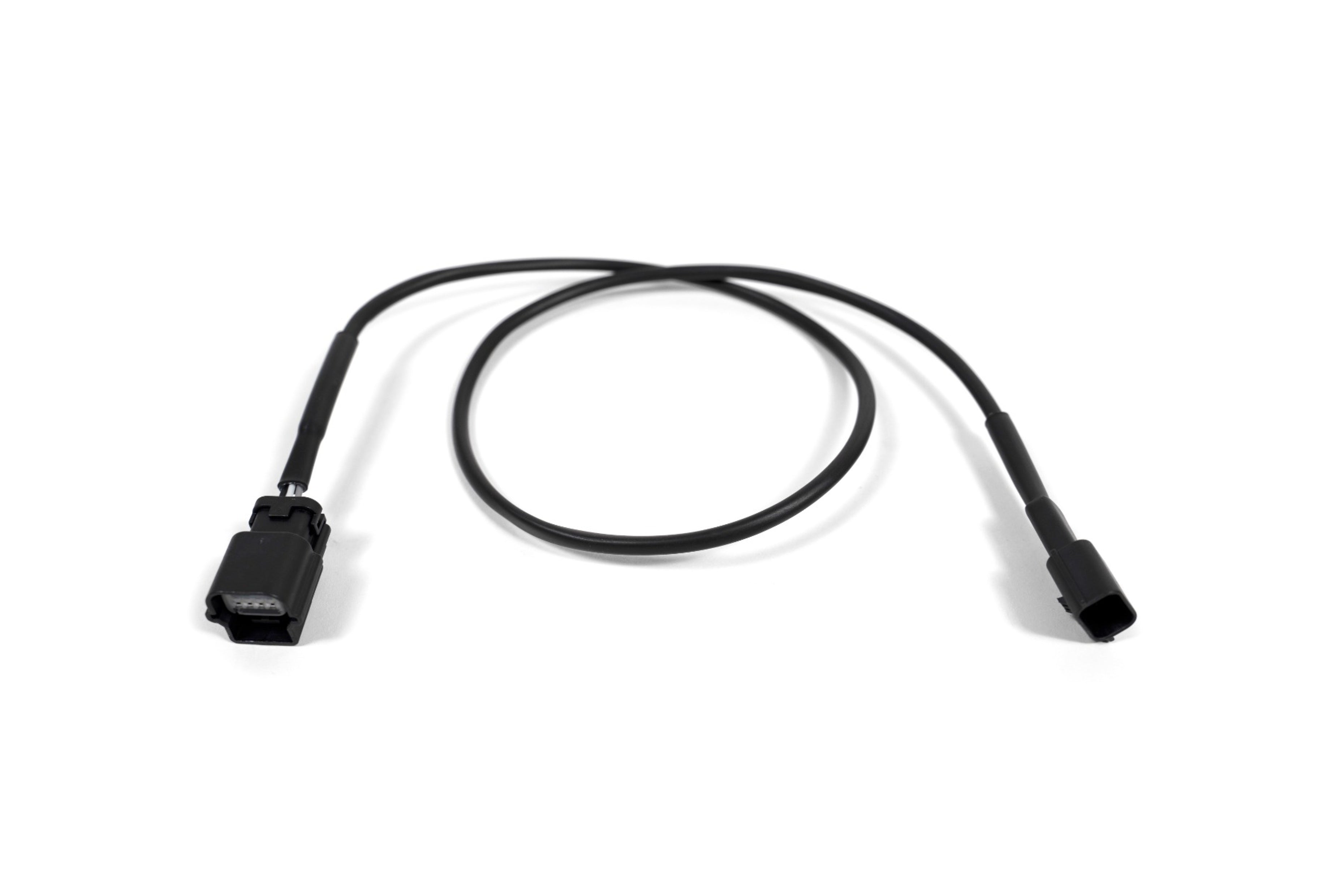

Full-Race 2024+ Ford F-150 and Raptor 3.5L EcoBoost Upper Shutter Motor Extension Harness

Designed for 2024 and newer Ford F-150 and Ford Raptor 3.5L EcoBoost trucks, the Full-Race Upper Shutter Motor Extension Harness provides a clean, practical solution for relocating the factory upper active grille shutter motor after installing a high-mount intercooler. When the original shutter assembly is removed, the upper shutter motor can remain visible in the grille opening, detracting from the intercooler's appearance. This plug-and-play extension harness provides the additional reach needed to relocate the motor behind the grille while maintaining the factory electrical connection. Featuring OEM-style connectors on both ends, the harness installs without cutting wires, splicing connections, or swapping pins. Designed to complement the Full-Race Shutter Motor Limiter Kit, this extension harness helps create a cleaner, more professional front-end appearance while retaining the motor's electrical connection. It is an ideal upgrade for EcoBoost truck owners seeking a refined high-mount intercooler installation without unnecessary wiring modifications.

Key Features

• Vehicle-specific application for 2024+ Ford F-150 and Ford Raptor 3.5L EcoBoost trucks.
• Extends the factory upper shutter motor connector to allow relocation behind the grille.
• Plug-and-play design with OEM-style connectors on both ends.
• Installs without cutting, splicing, or swapping electrical pins.
• Designed to work with the Full-Race Shutter Motor Limiter Kit.
• Developed for use with the Full-Race high-mount intercooler configuration.
• Allows the factory upper shutter motor to remain connected after removal of the original shutter frame.
• Available as a standalone extension harness or as an add-on to the applicable Full-Race intercooler kit.

Benefits

• Cleaner front-end appearance: Relocates the upper shutter motor behind the grille, helping keep the intercooler core as the visual focal point.
• Simple installation: Factory-style connectors provide a direct connection between the vehicle harness and the upper shutter motor without permanent wiring alterations.
• Maintains the factory electrical connection: Keeps the upper shutter motor powered and connected after relocation.
• Designed for the Full-Race limiter system: Complements the Full-Race Shutter Motor Limiter Kit, which provides the motor stop needed to help prevent a check engine light caused by the shutter motor operation.
• Preserves wiring integrity: Eliminates the need for wire cutting, splicing, or pin changes during installation.
• Limited lifetime warranty: Backed by a limited lifetime warranty against manufacturing defects for added purchase confidence.
• Optional appearance upgrade: The harness is not required for the limiter to function in the factory motor position, making it an excellent choice for owners seeking a cleaner grille opening.

Product Specifications

• Brand: Full-Race
• Product Name: Upper Shutter Motor Extension Harness
• Product Type: Automotive electrical extension harness
• Application: Upper active grille shutter motor relocation
• Vehicle Make: Ford
• Vehicle Models: F-150 and Raptor
• Engine Compatibility: 3.5L EcoBoost
• Model Years: 2024 and newer
• Connector Type: OEM-style connectors on both ends
• Installation Method: Plug-and-play
• Wiring Modifications: No cutting, splicing, or pin swapping required
• Intended Location: Behind the grille, allowing the upper shutter motor to be concealed
• Compatible Accessory: Full-Race Shutter Motor Limiter Kit

Install Difficulty Level

Difficulty: Easy

The Full-Race Upper Shutter Motor Extension Harness is designed for a straightforward, plug-and-play installation. Simply disconnect the upper shutter motor from the factory harness, connect the extension harness to the vehicle wiring, and reconnect the motor to the extension. No wire cutting, splicing, pin swapping, or wiring diagram is required. The harness is intended to simplify motor relocation during a high-mount intercooler installation. A specific installation time was not provided in the available product information.

Vehicle Fitment

• Year Range: 2024 and newer
• Make: Ford
• Model: F-150
• Engine: 3.5L EcoBoost
• Year Range: 2024 and newer
• Make: Ford
• Model: Raptor
• Engine: 3.5L EcoBoost

Fitment Note: This harness is intended for applications using the Full-Race high-mount intercooler configuration and is designed to work with the Full-Race Shutter Motor Limiter Kit. The limiter and extension harness serve different purposes: the limiter provides the motor stop needed to help prevent a related fault code, while the extension harness allows the motor to be relocated behind the grille. The extension harness is optional if the motor remains in its factory position.

CARB Compliance

This part does not carry a CARB (California Air Resources Board) Executive Order (EO) number. As such, it is not legal for sale or use in the state of California or any other state adopting California emission standards. Please ensure compliance with local regulations before purchasing.
