21-26 Ford Bronco / 22-24 Bronco Raptor Baja Designs 440088UP Squadron Sport 2.0 A-Pillar Light Kit -Clear

Baja Designs Squadron 2.0 Sport A-Pillar Light Kit - Ford Bronco / Bronco Raptor

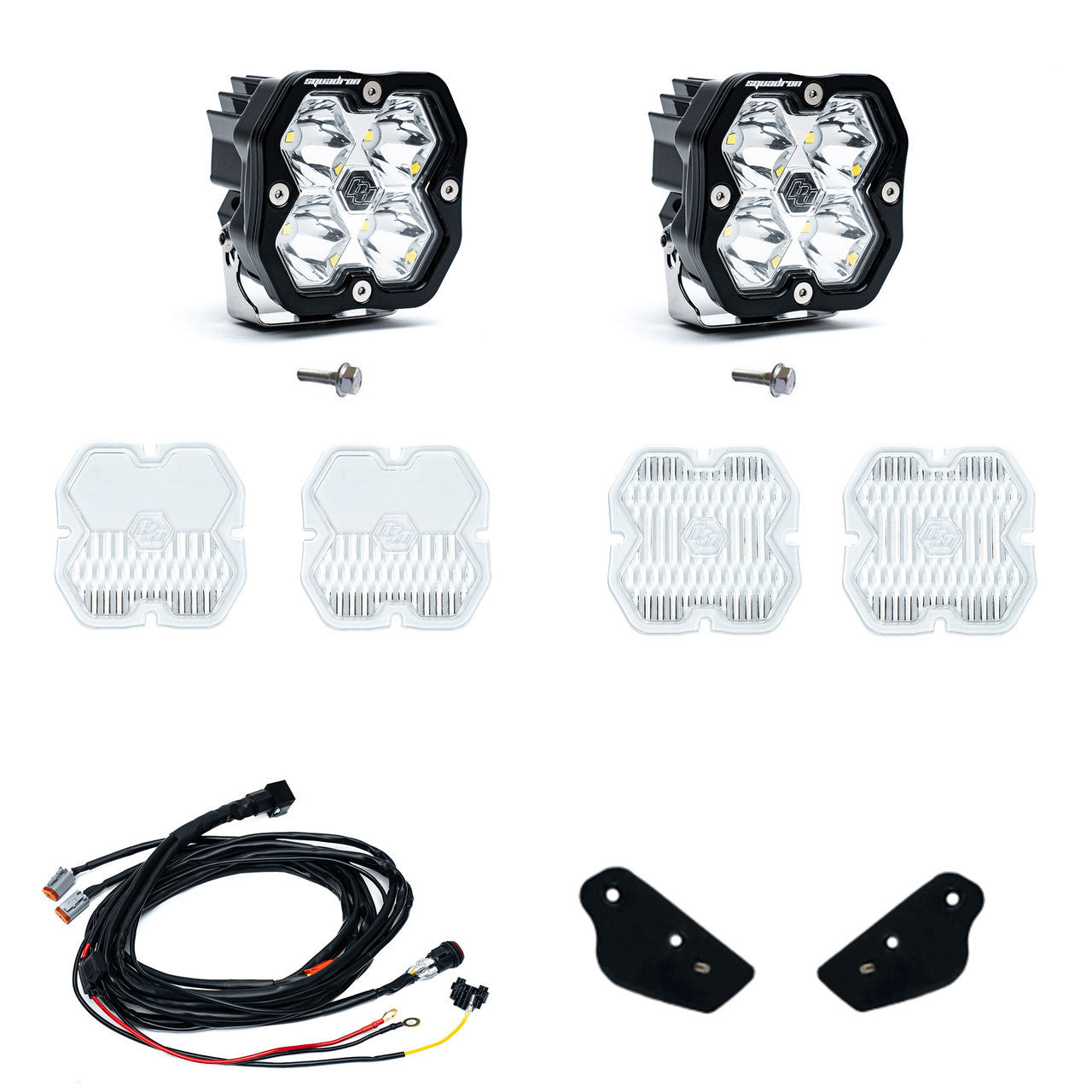

The Baja Designs Squadron 2.0 Sport A-Pillar LED Light Kit is a compact, high-performance lighting upgrade designed for Ford Bronco and Bronco Raptor owners who need greater visibility on trails, back roads, and other low-light environments. Part number 440088UP includes two Squadron 2.0 Sport lights, A-Pillar mounting plates, wiring options, lens kits, and the necessary mounting hardware for a clean and purposeful installation. Each light produces 3,200 lumens at 30 watts, while redesigned optics provide greater distance, wider coverage, improved beam control, and reduced unwanted light spill. With a nine-color selectable backlight, adjustable mounting brackets, durable 4-pin Deutsch-style connectors, and rugged weather protection, this A-Pillar lighting kit delivers enhanced illumination while complementing the Bronco's exterior.

Key Features

• Refined beam pattern provides greater distance, wider coverage, and reduced light spill.
• Each Squadron 2.0 Sport light produces 3,200 lumens at 30 watts.
• Nine selectable backlight colors allow the lighting appearance to be matched to the vehicle.
• Redesigned mounting brackets provide greater vertical adjustability for more precise light aiming.
• New clip-in reflectors stay secure during lens changes and support uService® maintenance.
• Redesigned gasket improves sealing and protection against the elements.
• Durable 4-pin Deutsch-style connectors improve wiring harness durability.
• Clear/Spot lighting configuration provides focused forward illumination.
• Includes additional Clear/Driving Combo and Clear/Wide Cornering lens kits.
• Available with a toggle switch 4-pin harness or an upfitter harness.

Benefits

• Provides additional trail visibility for nighttime off-road driving and low-light conditions.
• Improved beam control helps place usable light farther down the trail and across a wider field of view.
• Adjustable A-Pillar mounting allows the lights to be aimed toward hazards, obstacles, and surrounding terrain.
• Compact A-Pillar positioning adds auxiliary lighting without requiring a large light bar.
• IP69K-rated construction provides protection suited to demanding outdoor conditions.
• MoistureBlock technology provides waterproof, rainproof, and submersible protection.
• uService® allows replaceable lenses and optics for easier long-term maintenance.
• ClearView technology is designed to put usable light where it is needed.
• 5000K daylight color provides natural-looking illumination intended to reduce driver fatigue.
• Includes a 30-Day Satisfaction Guarantee and Limited Lifetime Warranty for added purchase protection.

Product Specifications

• Brand: Baja Designs
• Product: Squadron 2.0 Sport A-Pillar Light Kit
• Manufacturer Part Number: 440088UP
• Light Quantity: 2
• Light Type: Squadron 2.0 Sport LED
• Lens Color: Clear
• Primary Lens Pattern: Spot
• Additional Lens Kits: Clear/Driving Combo and Clear/Wide Cornering
• Output: 3,200 lumens per light
• Power: 30W per light
• Current Draw: 2.2A per light at 13.8V
• Operational Voltage: 12-32V
• Environmental Rating: IP69K
• Backlight: Color selectable with 9 selectable colors
• Connector: 4-pin Deutsch-style
• Mounting Location: A-Pillar
• Mounting Adjustability: Increased vertical adjustability
• Wiring Options: Toggle Switch 4-pin Harness or Upfitter Harness
• Upfitter Splitter: Deutsch 4-Pin 55-inch splitter included with upfitter kit
• Material: Not specified in the provided product information
• Overall Light Size: Not specified in the provided product information

Install Difficulty Level

Easy. The kit is designed specifically for the Ford Bronco and Bronco Raptor and includes the A-Pillar plates, wiring option, lens kits, and necessary mounting hardware. The manufacturer describes installation as seamless and straightforward. No verified installation time was provided in the available product information, so no installation-time estimate is stated.

Vehicle Fitment

• Year Range: 2021-2026
• Make: Ford
• Model: Bronco


• Year Range: 2022-2024
• Make: Ford
• Model: Bronco Raptor
