09-14 Ford F-150 & Raptor / 15-17 Lincoln Navigator CSF 8101 Transmission Oil Cooler

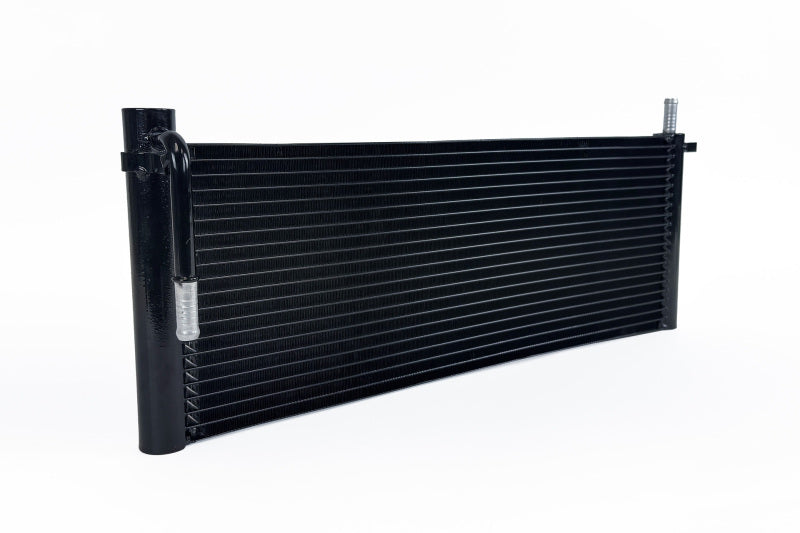

CSF High-Performance Transmission Oil Cooler – Part Number: CSF 8101

High transmission temperatures are one of the most common causes of premature transmission wear in performance trucks. When a Ford F-150, SVT Raptor, Expedition, or Lincoln Navigator is pushed hard through towing, hauling, off-roading, or spirited driving, transmission fluid temperatures can quickly climb to damaging levels. The CSF 8101 High-Performance Transmission Oil Cooler was engineered to solve this problem by dramatically improving heat dissipation and fluid capacity over the factory unit.

Developed by CSF in collaboration with Full-Race, this advanced cooling upgrade is specifically designed for 12th generation Ford F-150 trucks and compatible SUV platforms. Featuring CSF’s proprietary AC Condenser Technology with a high-pressure microtube design, this cooler maximizes oil flow and surface contact to significantly reduce transmission temperatures under demanding conditions. With 30% larger capacity and up to 2-4x more cooling fins and tubes than the OEM cooler, this performance transmission cooler delivers reliable temperature control whether the vehicle is towing heavy loads, navigating off-road terrain, or operating in hot climates. The result is improved transmission longevity, better performance consistency, and peace of mind for truck owners who expect their vehicle to handle serious work.

Key Features

• Engineered using CSF proprietary AC Condenser Technology for maximum cooling efficiency

• 1-Row Super-High Pressure 26mm 10-Channel Microtube core design for optimal oil flow

• 20 rows of 8mm tall multi-louvered fins for superior heat dissipation

• 30% larger fluid capacity than the factory transmission cooler

• 2-4x more cooling tubes and fins compared to OEM designs

• Heavy-duty welded all-aluminum construction for durability and corrosion resistance

• OEM-style inlet and outlet connections for seamless installation

• Direct drop-in replacement requiring no modifications

• Black finish for an OEM+ appearance

• Backed by a 2-Year Limited Warranty

Benefits

• Helps maintain safe transmission fluid temperatures during towing and off-road use

• Extends transmission life by preventing heat-related wear and breakdown

• Improves reliability for high-performance or heavily loaded trucks

• Maintains consistent transmission performance during demanding driving conditions

• Ideal upgrade for trucks with larger tires, towing setups, or performance modifications

• Provides added confidence during long hauls, trail runs, and extreme weather conditions

• Supported by CSF’s industry reputation and 2-Year Limited Warranty protection

Product Specifications

• Part Number: CSF 8101

• Product Type: Performance Transmission Oil Cooler

• Core Design: 1-Row High-Pressure Microtube

• Core Thickness: 26–32mm

• Core Dimensions: Approximately 7.9 in. x 20.1 in.

• Cooling Fin Rows: 20

• Fin Height: 8mm multi-louvered fins

• Cooling Tube Count: 19 tubes

• Material: All-Aluminum Construction

• Finish / Color: Black

• Inlet / Outlet Type: OEM Style Quick Connect

• Installation Type: Direct Drop-In Replacement

• Hardware Included: No

• Weight: Approximately 4.7 lbs

• Warranty: 2-Year Limited Warranty

Install Difficulty Level
Installation is designed to be quick and straightforward thanks to the direct drop-in replacement design. The CSF 8101 mounts in the factory location and connects using OEM-style fittings, eliminating the need for cutting, fabrication, or custom modifications. Most installations can be completed in under 30 minutes, making it an easy upgrade for enthusiasts with basic hand tools. This simple plug-and-play design makes improving transmission cooling both fast and hassle-free.

Vehicle Fitment

• 2010–2014 Ford F-150 SVT Raptor – 6.2L V8

• 2011–2014 Ford F-150 – 3.5L EcoBoost V6

• 2011–2014 Ford F-150 – 3.7L V6

• 2011–2014 Ford F-150 – 5.0L V8

• 2011–2014 Ford F-150 – 6.2L V8

• 2009–2010 Ford F-150 – 4.6L V8

• 2009–2010 Ford F-150 – 5.4L V8

• 2007–2014 Ford Expedition – 5.4L V8

• 2015–2017 Lincoln Navigator – 3.5L EcoBoost V6

• 2007–2014 Lincoln Navigator – 5.4L V8
