15-25 Ford F-150 & Raptor CSF 8102 Transmission Oil Cooler

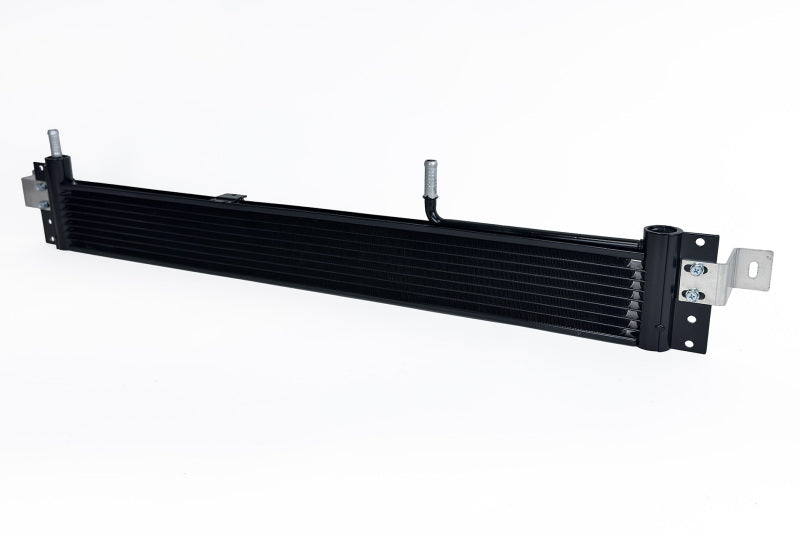

15-25 Ford F-150 & Raptor CSF 8102 Transmission Oil Cooler – Part Number: CSF 8102

Transmission temperatures can quickly climb when a Ford F-150 or Raptor is pushed to its limits. Heavy towing, aggressive off-road driving, high horsepower applications, and demanding work conditions all generate excessive heat that can reduce transmission performance and shorten component lifespan. The CSF 8102 High-Performance Transmission Oil Cooler is engineered to solve this problem by dramatically improving cooling efficiency for 2015-2025 Ford F-150 and 2017-2025 Ford Raptor models.

Developed through a collaboration between CSF Race and Full-Race, this performance transmission cooler uses advanced AC Condenser Technology and a high-pressure 26mm 10-channel microtube core to maximize oil flow and cooling surface area. The result is significantly improved heat dissipation under demanding conditions such as towing, hauling, racing, or off-road driving. Compared to factory units, this cooler is approximately 40% larger and features 8 rows of multi-louvered cooling fins, allowing it to outperform even the dual-cooler setups found on some Raptor models. Built with welded all-aluminum construction and OEM-style connections, the CSF 8102 offers a reliable plug-and-play upgrade designed to protect transmission components, maintain consistent fluid temperatures, and improve overall drivetrain durability for serious truck owners.

Key Features

• Advanced AC Condenser Technology for superior heat transfer

• 1-Row Super-High Pressure 26mm 10-Channel Microtube core design

• Approximately 40% larger cooling capacity compared to factory cooler

• 8 rows of 8mm tall multi-louvered cooling fins for enhanced airflow and heat dissipation

• Welded all-aluminum construction for durability and long-term reliability

• OEM-style quick-connect inlet and outlet connections

• Precision laser-cut mounting brackets

• Black finish for a clean OEM+ appearance

• Drop-in replacement designed to install in the factory location

• Engineered in collaboration with Full-Race performance specialists

Benefits

• Helps maintain optimal transmission fluid temperatures during towing, hauling, and off-road driving

• Reduces risk of overheating that can damage internal transmission components

• Improves reliability and performance under heavy load conditions

• Helps extend transmission life and maintain consistent shifting performance

• Outperforms many factory cooling systems, including some dual-cooler configurations

• Provides peace of mind for performance builds and work trucks alike

• Backed by a 2-Year Limited Manufacturer Warranty for added confidence and long-term durability

Product Specifications

• Part Number: CSF 8102

• Product Type: High-Performance Transmission Oil Cooler

• Core Height: 3.7 inches

• Core Width: 29.2 inches

• Core Thickness: 26mm

• Overall Thickness: 32mm

• Core Design: 1-Row Microtube Performance Core

• Cooling Tubes: 7

• Cooling Fin Rows: 8 rows of 8mm multi-louvered fins

• Core Material: Aluminum

• Construction Type: Tube and Fin, robot welded

• Finish / Color: Black

• Housing Material: Aluminum

• Inlet Connection Type: Quick Connect

• Outlet Connection Type: Quick Connect

• Mounting Hardware Included: No

• Electric Fan Included: No

• Installation Type: Direct Drop-In Fit

• Grade Type: Performance

Install Difficulty Level
Installation is designed to be simple and straightforward thanks to the direct drop-in design that replaces the factory transmission cooler in the OEM mounting location. No cutting, drilling, or fabrication is required on properly equipped vehicles. With basic hand tools and standard mechanical knowledge, installation typically takes under 30 minutes, making this an easy upgrade for most enthusiasts or professional installers.

Vehicle Fitment

2017-2020 Ford F-150 Raptor – 3.5L EcoBoost V6
2021-2025 Ford F-150 Raptor – 3.5L EcoBoost V6
2025 Ford F-150 Raptor R – 5.2L Supercharged V8

2015-2020 Ford F-150 – 2.7L EcoBoost V6
2021-2025 Ford F-150 – 2.7L EcoBoost V6

2015-2020 Ford F-150 – 3.5L EcoBoost V6
2021-2025 Ford F-150 – 3.5L EcoBoost V6

2015-2020 Ford F-150 – 5.0L V8
2021-2025 Ford F-150 – 5.0L V8

Fitment Notes
Not all Ford F-150 models were equipped with a front-mounted transmission oil cooler from the factory. Verify that the vehicle is equipped with either Ford OEM part number FL3Z-7A095-A or HL3Z-7A095-A before purchasing.

If the vehicle is equipped with Ford part number ML3Z-7869-C, the CSF 8102 cooler will not fit without modifications. Trucks equipped with the Factory Heavy Duty Towing Package typically include a front-mounted transmission cooler and are more likely to support direct installation.

For additional product information, fitment verification, or to report any inaccuracies in this product description, contact the MPT Performance experts at (407) 636-7077 or by email for professional assistance.
