11-25 Ford F-150 DeatschWerks 4-02-VB40AX1 Voltage Booster with Plug-N-Play Harness

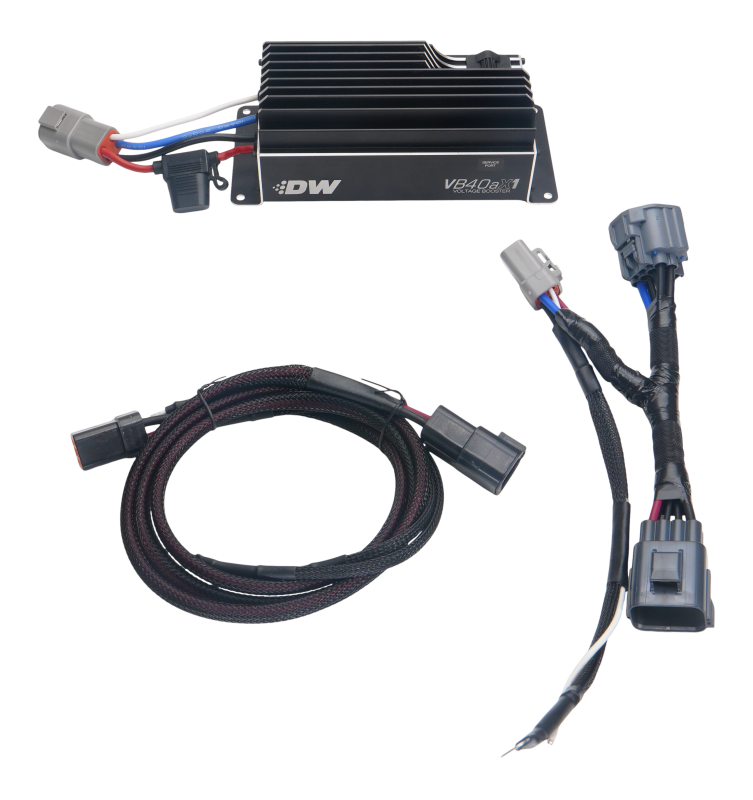

DeatschWerks 4-02-VB40AX1 Voltage Booster with Plug-N-Play Harness

Enhance your 2011–2025 Ford F-150’s fuel system with the DeatschWerks 4-02-VB40AX1 Voltage Booster. Designed for performance enthusiasts and tuners, this plug-and-play solution increases fuel pump voltage, ensuring consistent fuel delivery under high-demand conditions. Whether you're upgrading to larger injectors, running E85, or adding forced induction, this voltage booster supports your power goals by maintaining optimal fuel pressure.

Key Features

• Plug-N-Play Installation: No splicing or cutting required; integrates seamlessly with OEM wiring.

• Supports High-Flow Fuel Pumps: Compatible with DeatschWerks DW300, DW400, DW440, and DW650il fuel pumps.

• Voltage Boosting: Delivers up to 20V in standard mode and up to 26V in brushless mode.

• Digital Control: Features an OLED screen for voltage selection and ramp rate adjustments.

• Adjustable Ramp Rates: Choose from Auto, 1.5, 1.0, 0.5 seconds, or Instant to prevent fuel pressure spikes.

• User-Defined Passcode Protection: Secure your settings with customizable passcodes.

• Compact and Durable Design: Anodized aluminum housing with integrated heat sinks.

Benefits

• Increased Fuel Flow: Enhances fuel pump performance, supporting higher horsepower applications.

• Enhanced Reliability: Ensures consistent fuel delivery during high-demand driving conditions.

• Tuner-Friendly: Easily integrates into performance tuning setups.

• Simplified Installation: The plug-and-play design reduces installation time and complexity.

• Warranty Assurance: Comes with a manufacturer warranty, providing peace of mind.

Product Specifications

• Part Number: 4-02-VB40AX1

• Weight: Approximately 2.5 lbs (1120 g)

• Housing Material: Anodized Aluminum

• Input Voltage: 6.0 - 14.5 Volts

• Output Voltage (Standard Mode): 14.5 - 20 Volts

• Output Voltage (Brushless Mode): 14.5 - 26 Volts

• Maximum Current: 40 Amps

• Voltage Settings: 14.5, 18, 20, 22, and 26 Volts

• Trigger Modes: Active Low and Always On

• Ramp Rates: Auto, 1.5, 1.0, 0.5, and Instant

• Compatible Pumps: Brushed and Brushless

• Wiring: 24" (610mm) 10 AWG input; 36" (915mm) 10 AWG output; 36" (915mm) 14 AWG trigger

• Fuse: ATO 50 Amp

• Power Connection: Red Wire, 12V Key On

• Ground Connection: Black Wire, Chassis Ground

• Trigger Connection: White Wire, Switched Ground

• Fuel Pump Power: Blue Wire, To Fuel Pump

Install Difficulty Level

Installation of the DeatschWerks 4-02-VB40AX1 Voltage Booster is straightforward, thanks to its plug-and-play design. With a typical installation time of approximately 30 minutes, this upgrade is accessible even for those with basic automotive knowledge. The included harnesses and clear instructions make the process efficient and hassle-free.

Vehicle Fitment

This voltage booster is compatible with the following Ford F-150 models:

• Years: 2011–2025

• Make: Ford

• Model: F-150

• Engine Options: Includes 3.5L EcoBoost, 5.0L V8, 2.7L EcoBoost, 3.0L Power Stroke Diesel, and 3.3L Ti-VCT V6.

Please verify compatibility with your specific vehicle configuration before purchasing.

CARB Approval

This part does not carry a CARB (California Air Resources Board) Executive Order (EO) number. As such, it is not legal for sale or use in the state of California or any other state adopting California emission standards. Please ensure compliance with local regulations before purchasing.
