21-26 Ford F-150 Diode Dynamics DD8783 D-Switch Hub Mounting Kit

21-26 Ford F-150 Diode Dynamics D-Switch Hub Mounting Kit

Part Number: DD8783

Designed specifically for the 2021-2026 Ford F-150, the Diode Dynamics D-Switch Hub Mounting Kit delivers a clean, professional solution for mounting the advanced D-Switch control system in the engine bay. Engineered to utilize factory mounting locations, this premium bracket eliminates the guesswork associated with switch panel installations while maintaining easy access to the D-Switch hub. The vehicle-specific design ensures a seamless fit without interfering with critical components such as the battery or fuse box.

For truck owners looking to maximize control of off-road lighting, auxiliary accessories, air compressors, and other 12V equipment, the D-Switch system provides industry-leading functionality. Featuring dynamic channel assignment, a dedicated backlight channel, OEM signal integration, Bluetooth app control, and Apple CarPlay and Android Auto compatibility, this system delivers exceptional customization and convenience. Combined with a heavy-duty powder-coated stainless steel mounting bracket, the DD8783 kit provides a durable, reliable, and professional-grade accessory management solution built for demanding environments.

Key Features

• Vehicle-specific D-Switch Hub mounting solution for 2021-2026 Ford F-150 models
• Utilizes OEM mounting points for a true bolt-on installation
• No cutting, drilling, or vehicle modifications required
• Optimized engine bay placement for convenient hub access
• Does not interfere with factory battery or fuse box locations
• Heavy-duty 10-gauge powder-coated stainless steel bracket construction
• Advanced 8-channel D-Switch control system included
• Four 15A outputs and four 30A outputs for high-capacity accessory control
• Dedicated 15A backlight channel with separate control button
• Dynamic channel assignment allows multiple outputs per button
• Integrated Bluetooth smartphone control via iOS and Android devices
• Apple CarPlay and Android Auto compatibility
• OEM-style integration through ignition and trigger wire inputs
• Solid-state relay design eliminates mechanical relay wear
• IP67-rated weather-resistant hub and controller electronics
• Engineered and assembled in the USA using global materials

Benefits

• Creates a clean, factory-style installation appearance
• Eliminates uncertainty when mounting the D-Switch hub
• Simplifies control of multiple lighting and accessory circuits
• Allows custom programming for lighting patterns and grouped outputs
• Provides convenient control from the controller, smartphone, or vehicle infotainment screen
• Enhances off-road functionality and accessory management
• Delivers exceptional durability for harsh weather and trail conditions
• Reduces maintenance thanks to solid-state electronics with no replaceable relays
• Provides long-term reliability with IP67 weather resistance
• Backed by a 3-Year Limited Warranty for added peace of mind
• Supported by a 30-Day Return Policy with no restocking fee and a 100% Satisfaction Guarantee

Product Specifications

• Part Number: DD8783
• Application: Off-Road
• Color: Black
• Mount Finish: Powder-Coated
• Mount Material: 10-Gauge Stainless Steel
• Hub Material: Aluminum Casting
• Controller Material: ASA Plastic
• Circuit Board Material: FR4 PCB
• Operating Voltage: 9V-16V DC
• Maximum Current Capacity: 125A
• Channel Power:
  • Channels 1-4: 15A each
  • Channels 5-8: 30A each
  • Backlight Channel: 15A total
• Battery Cable Size: 4AWG
• Sensor Wire Size: 22AWG
• Controller Wire Size: 26AWG
• Operating Temperature: -40°C to 120°C (-40°F to 250°F)
• Cooling Method: Passive Pin-Fin Heatsink
• Weather Rating: IP67
• FCC ID: 2BPIL-DD8373
• Controller Dimensions: 5.06" x 2.66" x 0.45"
• Hub Dimensions: 8.33" x 6.26" x 1.79"
• Unit Weight: 1.9 lbs
• Product Weight: 4.7 lbs
• Shipping Weight: 9.3 lbs

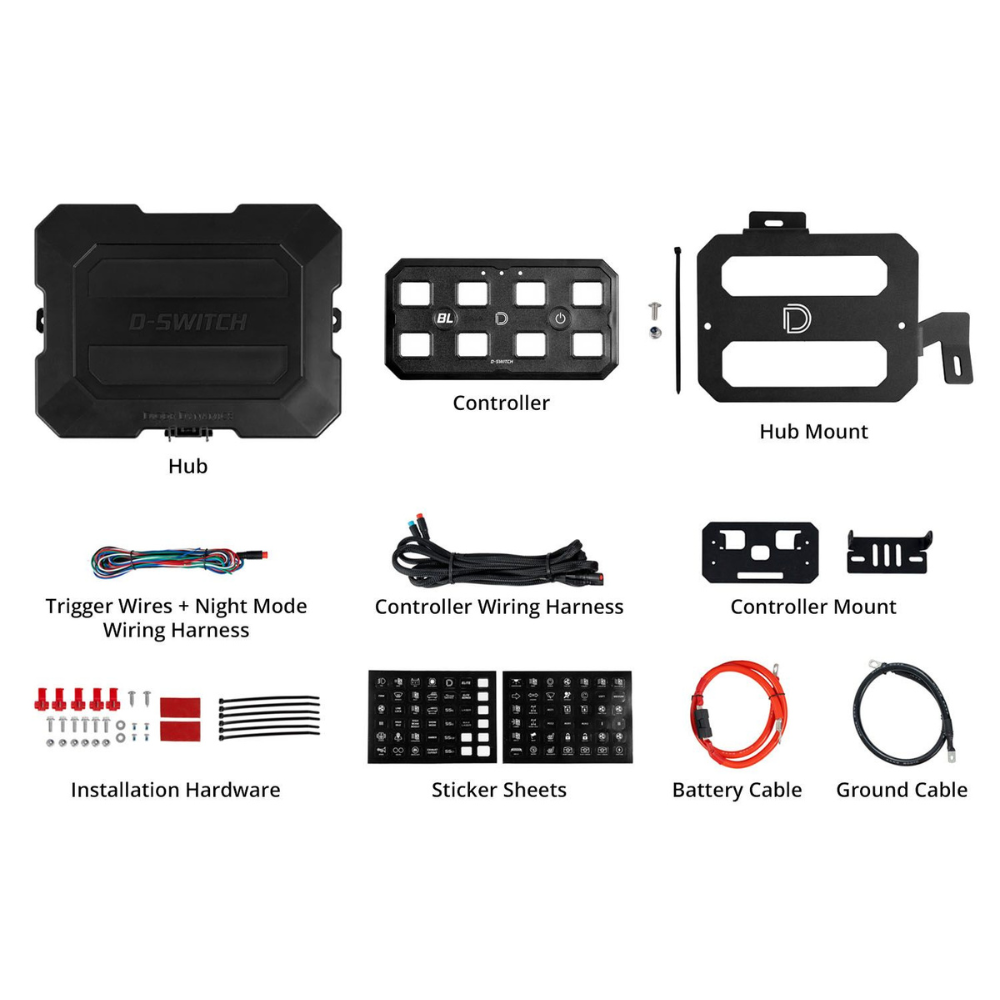

What's Included

• One (1) D-Switch Hub
• One (1) D-Switch Controller
• One (1) Universal Controller Mounting Bracket
• One (1) Ford F-150 Specific D-Switch Hub Bracket
• One (1) 10-Foot Controller Wiring Harness
• One (1) Trigger Wire and Night Mode Harness
• One (1) 3-Foot 4AWG Battery Cable
• One (1) 3-Foot 4AWG Ground Cable
• Two (2) Button Sticker Sheets
• Five (5) T-Taps
• Seven (7) Zip Ties
• Double-Sided Tape
• Installation Hardware
• Installation and Programming Guide

Install Difficulty Level
Installation is considered Easy and is ideal for DIY enthusiasts with basic hand tools. The vehicle-specific bracket mounts directly to factory attachment points in the engine bay, eliminating the need for drilling, cutting, or fabrication. The manufacturer lists installation time as approximately 30 minutes, making this one of the quickest and cleanest accessory management upgrades available for the 2021-2026 Ford F-150.

Vehicle Fitment

• 2021 Ford F-150 – All Engine Options
• 2022 Ford F-150 – All Engine Options
• 2023 Ford F-150 – All Engine Options
• 2024 Ford F-150 – All Engine Options
• 2025 Ford F-150 – All Engine Options
• 2026 Ford F-150 – All Engine Options

Compatible with F-150 trims equipped with factory engine bay mounting locations, including XL, XLT, Lariat, King Ranch, Platinum, Tremor, Raptor, STX, Police Responder, and other applicable configurations.

CARB Compliance
This product is a switch management and mounting system and is not classified as an emissions-related component. No CARB Executive Order (EO#) or CARB EO exemption number is required for this product.
