15-20 Ford F-150 / 17-20 Raptor Diode Dynamics DD7648 HitchMount LED Pod Reverse Kit - C1R + Brake

15–20 Ford F-150 / 17–20 Raptor Diode Dynamics DD7648 HitchMount LED Pod Reverse Kit – C1R + Brake

Part Number: DD7648

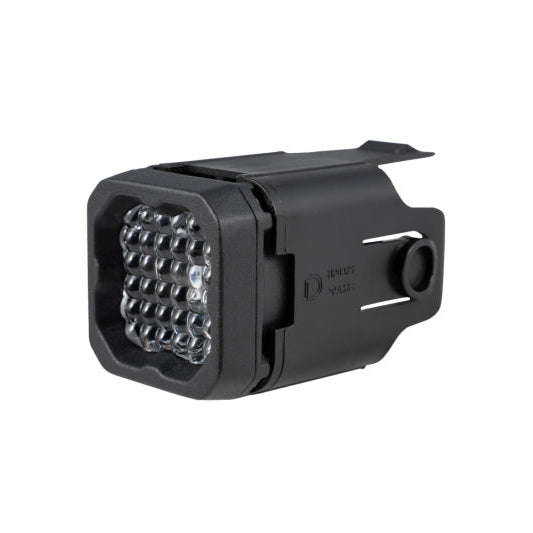

15–20 Ford F-150 / 17–20 Raptor Diode Dynamics HitchMount LED Pod Reverse Kit – C1R + BrakeThis premium HitchMount LED Pod Reverse Kit is engineered to dramatically improve rear visibility and safety for Ford F-150 (2015–2020) and Ford Raptor (2017–2020) applications. Designed around Diode Dynamics’ high-performance SSC1 or C1R LED pod technology, this system transforms the factory hitch receiver into a powerful lighting upgrade that delivers a high-output reverse light, enhanced running light, and an optional 4th brake light function with the C1R configuration. Built for drivers who demand confidence when backing up in low-light environments, this kit replaces weak factory reverse illumination with a focused, high-intensity beam engineered for real-world utility, trail use, towing, and daily driving. With plug-and-play integration and a snap-fit design, it delivers professional-grade lighting performance with minimal effort and maximum impact.

Key Features

• Converts factory 2-inch or 2.5-inch hitch receiver into a high-output LED lighting platform
• Compatible with SSC1 Sport or C1R Stage Series LED pods
• Provides reverse light, running light, and (C1R) 4th brake light functionality
• Plug-and-play integration with factory trailer wiring harness
• Optional SafetyStrobe brake light strobing feature (C1R configuration)
• Snap-fit mounting system for fast installation and removal
• Designed and assembled in the USA for quality assurance and performance consistency
• Patented TIR optic technology for focused, efficient light projection
• IP69K waterproof and SAE J575 durability tested construction

Benefits

• Significantly improves nighttime reversing visibility for safer maneuvering and towing
• Enhances vehicle visibility with additional rear lighting functions for added road awareness
• Eliminates the need for complex wiring modifications or permanent installation
• Increases rear-end safety presence with a high-visibility brake light upgrade (C1R)
• Designed for long-term durability under extreme weather, vibration, and moisture exposure
• Backed by a lifetime warranty and 30-day satisfaction return policy for peace of mind

Product Specifications

• LED Pod Options: SSC1 Sport or C1R Stage Series
• Color Temperature: 6000K bright white (reverse function)
• Measured Output: SSC1 – 1,030 lumens / C1R – 1,080 lumens
• Intensity: SSC1 – 400 cd / C1R – 480 cd
• Power Draw: 12.8W (SSC1) / 14.1W (C1R)
• Operating Voltage: 9–16V DC
• Housing Material: Aluminum casting with polycarbonate lens
• Mount Material: Heavy-duty engineered polymer with rubber gasket sealing
• Connector Type: Deutsch DT waterproof connectors
• Cooling System: Passive pin-fin heat sink design
• Waterproof Rating: IP69K high-pressure, high-temperature washdown rated
• Operating Temperature Range: -40°C to 85°C
• Weight: Approx. 0.95–1.0 lb per pod assembly
• Beam Pattern: Wide flood pattern with 50x50° coverage
• Finish: Black housing with integrated red backlight (running function)

Install Difficulty Level
Installation is extremely simple and designed for quick plug-and-play setup, requiring as little as 5 minutes in most cases. The snap-fit hitch design eliminates drilling, cutting, or permanent modification, while the factory-style wiring harness connects directly into existing trailer wiring. No specialized tools are required beyond a basic toolset, making this one of the easiest lighting upgrades available for Ford trucks.

Vehicle Fitment

• Make: Ford
• Models: F-150 (2015–2020), Raptor (2017–2020)
• Engine Compatibility: Supports all factory engine configurations offered in the listed model years, including gasoline and diesel variants where applicable
• Mount Location: 2-inch or 2.5-inch trailer hitch receiver with open-back design required
• Function: Auxiliary rear lighting system (reverse, running, and brake lighting support depending on configuration)

This HitchMount LED Pod Reverse Kit delivers a premium lighting upgrade that blends performance, safety, and convenience in a rugged, vehicle-specific design. For questions about compatibility or installation support, or to report product description inaccuracies, contact the MPT Performance experts at (407) 636-7077 or by email.
