21-26 Ford Bronco Sport Diode Dynamics DD7175 SSC1 LED Fog Light Kit - Yellow SAE Fog

21-26 Ford Bronco Sport Diode Dynamics DD7175 SSC1 LED Fog Light Kit - Yellow SAE Fog

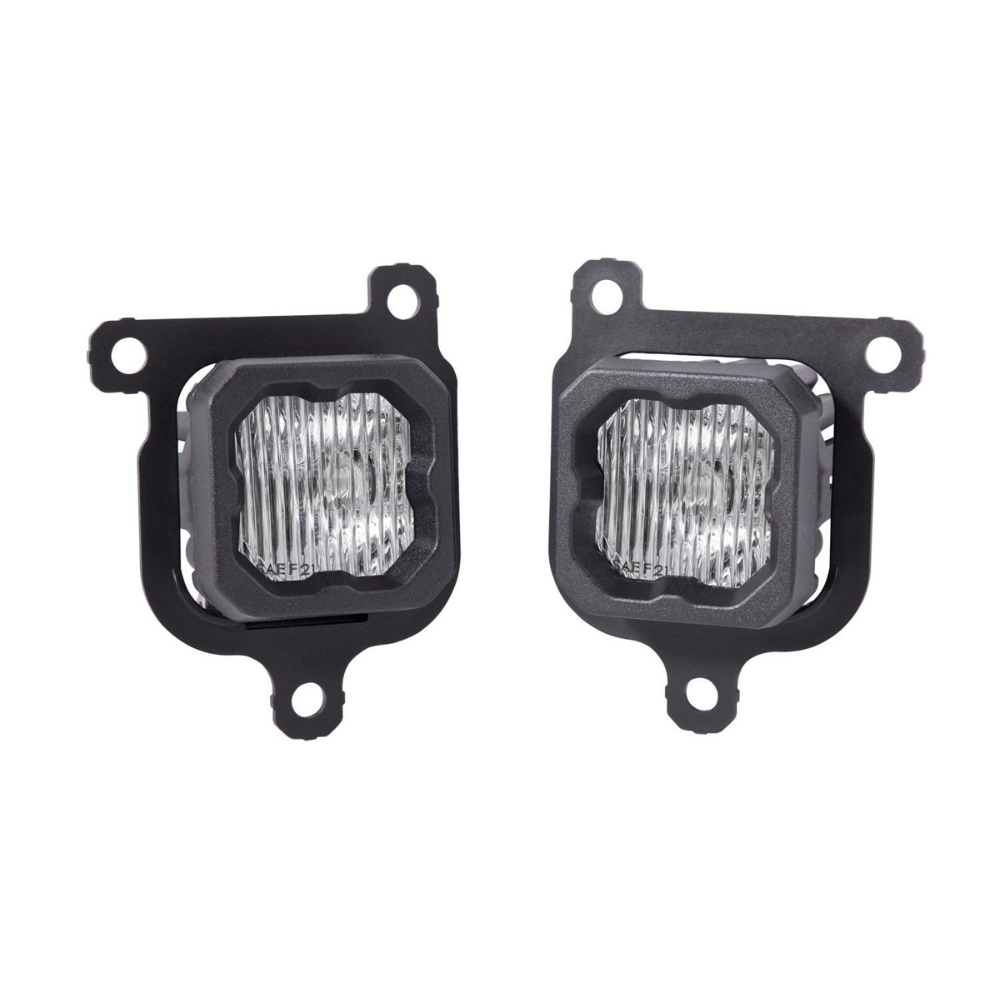

The Diode Dynamics SSC1 LED Fog Light Kit (DD7175) is engineered specifically for 2021–2026 Ford Bronco Sport models, delivering a dramatic upgrade in both visibility and style. Designed as a direct bolt-on replacement for factory fog lamps (on models without OEM fog lights), this kit transforms nighttime and inclement weather driving with powerful SAE-compliant yellow fog output. Featuring advanced Total Internal Reflection (TIR) optics and high-intensity Osram Boost HX LED technology, the SSC1 pods maximize usable light while minimizing glare. The result is a wide, controlled beam pattern that enhances road awareness, improves safety in fog, rain, dust, and snow, and adds a distinctive off-road-inspired amber accent through its integrated backlight feature. Built in the USA and engineered for precision fitment, this kit delivers premium lighting performance with a clean, factory-style appearance.

Key Features

• Direct bolt-on fog light replacement for 2021–2026 Ford Bronco Sport (without factory fog lamps)
• SAE-compliant fog beam pattern designed for legal on-road use when properly aimed
• Selective yellow 3000K output optimized for poor weather visibility and high contrast
• Advanced TIR optics for highly efficient, focused light distribution
• Osram Boost HX high-performance 20W LED chips per pod
• Integrated amber backlight feature for signature styling accent
• Plug-and-play wiring with included H11 DT adapters for simplified installation
• Custom-molded Type FBS brackets for factory-style mounting and alignment
• Engineered and assembled in the USA with premium-grade components

Benefits

• Significantly improves forward visibility in fog, rain, snow, and dust conditions
• Enhances driving safety by reducing glare and maximizing road illumination spread
• Provides a premium aesthetic upgrade with modern LED styling and amber accent lighting
• Plug-and-play design reduces installation complexity and eliminates major wiring modifications
• Durable construction designed for extreme environments and long-term reliability
• Backed by a lifetime warranty and 100% satisfaction guarantee for lasting confidence

Product Specs

• Light Output: 1980 raw lumens per pod
• Color Temperature: 3000K selective yellow (fog beam)
• Beam Pattern: SAE fog, 98° wide spread
• Intensity: 4,200 cd (amber), 6,000 cd (white equivalent spec reference)
• Power Consumption: 19.2W main beam, 0.3W backlight per pod
• Operating Voltage: 9–16V DC
• Current Draw: 1.5A main beam @ 13.2V
• LED Emitter: Osram Boost HX
• Materials: Polycarbonate lens, aluminum housing, rubber gasket
• Cooling System: Passive pin-fin heatsink design
• Waterproof Rating: IP69K high-pressure resistant sealing
• Operating Temperature: -40°F to 185°F (-40°C to 85°C)
• Connector Type: Deutsch DT
• Weight: 0.65 lb per pod (1.3 lb set)
• Beam Angle: Wide fog distribution pattern
• Quantity: Pair (driver and passenger side)

Install Difficulty Level

Installation is considered easy and can typically be completed in approximately 30–60 minutes. The kit is designed with a true plug-and-play configuration using included adapters and factory-style brackets, requiring only basic hand tools and no permanent vehicle modification. Factory fog light assemblies are replaced directly, making this a straightforward upgrade suitable for both DIY enthusiasts and professional installers.

Vehicle Fitment

• Ford Bronco Sport
• Model Years: 2021, 2022, 2023, 2024, 2025, 2026
• Engine Compatibility: All engine variants (models without factory-installed fog lights)
• Application: Front fog light upgrade kit with Type FBS bracket system

Important Product Overview

This SSC1 LED Fog Light Kit represents a high-performance lighting upgrade for drivers seeking enhanced visibility, rugged durability, and modern styling. With precision-engineered optics, road-legal beam control, and premium USA-built construction, it is designed to outperform traditional halogen fog lights while maintaining a factory-integrated appearance.

For questions regarding fitment accuracy or product details, or to report description discrepancies, contact the MPT Performance experts at (407) 636-7077 or by email.
