21-23 Ford Bronco Fox 883-06-213 2.5 Performance Series Rear Coil-Over Reservoir Shock-Adjustable

21-23 Ford Bronco Fox 883-06-213 2.5 Performance Series Rear Coil-Over Reservoir Shock-Adjustable

The 21-23 Ford Bronco Fox 883-06-213 2.5 Performance Series Rear Coil-Over Reservoir Shock-Adjustable is a high-performance shock absorber designed for off-road enthusiasts who want to enhance their driving experience.

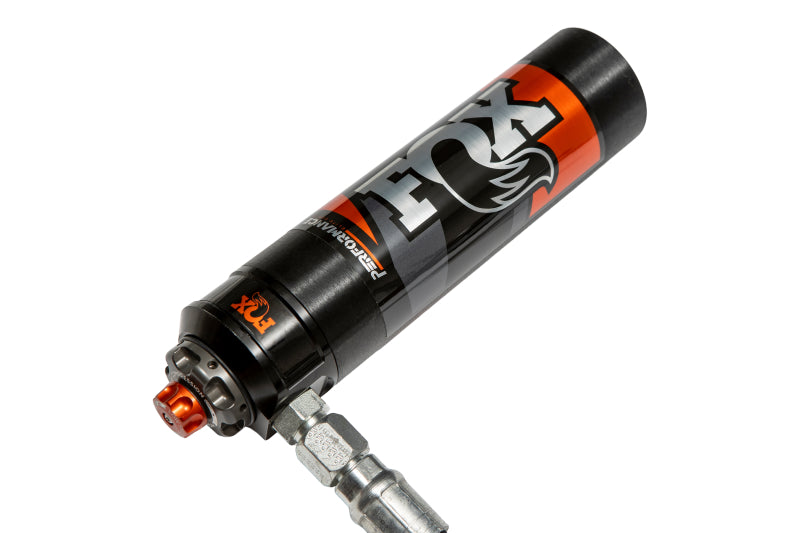

The Fox 883-06-213 2.5 Performance Series Rear Coil-Over Reservoir Shock-Adjustable is engineered by off-road enthusiasts to enhance comfort, maximize articulation, and increase compliance in the dirt. The shocks’ 2.5-inch aluminum bodies and external reservoirs efficiently dissipate heat by increasing internal oil capacity, while the remote reservoirs with Dual Speed Compression (DSC) adjusters are strategically mounted to clear aggressive mud tires and leave space for aftermarket skid plates and bumpers. The shocks’ progressively wound springs provide extra clearance and movement to unlock your Bronco’s entire range of usable travel in both jounce and droop positions. These springs were specifically chosen to compliment the Bronco’s IFS design to offer a uniquely soft ride and better control through rough terrain.

Key Features

• 2.5” aluminum body resists rust over time
• External reservoirs efficiently dissipate heat by increasing internal oil capacity
• Dual Speed Compression (DSC) adjusters manage stability through all types of terrain
• Strategically mounted reservoirs clear aggressive mud tires and leave space for aftermarket skid plates and bumpers
• Custom progressive springs provide extra clearance and movement to unlock your Bronco’s entire range of usable travel in both jounce and droop positions

Benefits

• Enhances comfort, maximizes articulation, and increases compliance in the dirt
• Provides extra clearance and movement to unlock your Bronco’s entire range of usable travel in both jounce and droop positions
• Offers a uniquely soft ride and better control through rough terrain
• Strategically mounted reservoirs clear aggressive mud tires and leave space for aftermarket skid plates and bumpers
• Dual Speed Compression (DSC) adjusters manage stability through all types of terrain
• Custom progressive springs provide extra clearance and movement to unlock your Bronco’s entire range of usable travel in both jounce and droop positions

Product Specs

• Body: 2.5" Impact extruded and CNC machined 6061-T6 hard anodized aluminum body
• Body Plating: Hard-anodized for a durable finish
• Reservoir: 2.5" Smooth bore and honed seamless alloy reservoir
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Spring: Application specific, custom progressive springs
• Shaft: 7/8" hard chrome plated steel shafts
• Valving: Application specific valving to maximize performance
• Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
• Bearing: PTFE-lined, heat-treated, alloy steel spherical
• Adjustments: Ride height preload ring
• Extended: 26.410
• Compressed: 18.440
• Travel: 7.970
• Top Mount: OEM
• Bottom Mount: Eyelet
• Replaces Part Number: 883-06-196

Install Difficulty Level

The Fox 883-06-213 2.5 Performance Series Rear Coil-Over Reservoir Shock-Adjustable is easy to install and can be done in a short amount of time. According to web results, the installation process takes approximately 2-3 hours.

Vehicle Fitment

The Fox 883-06-213 2.5 Performance Series Rear Coil-Over Reservoir Shock-Adjustable is compatible with the following vehicles:

• Ford Bronco With Sasquatch Package | Excludes Raptor submodel 2024 Rear ALL 2-2.5"
• Ford Bronco Without Sasquatch Package | Excludes Raptor submodel 2024 Rear ALL 3-3.5"
• Ford Bronco With Sasquatch Package | Excludes Raptor submodel 2023 Rear ALL 2-2.5"
• Ford Bronco Without Sasquatch Package | Excludes Raptor submodel 2023 Rear ALL 3-3.5"
• Ford Bronco With Sasquatch Package | Excludes Raptor submodel 2022 Rear ALL 2-2.5"
