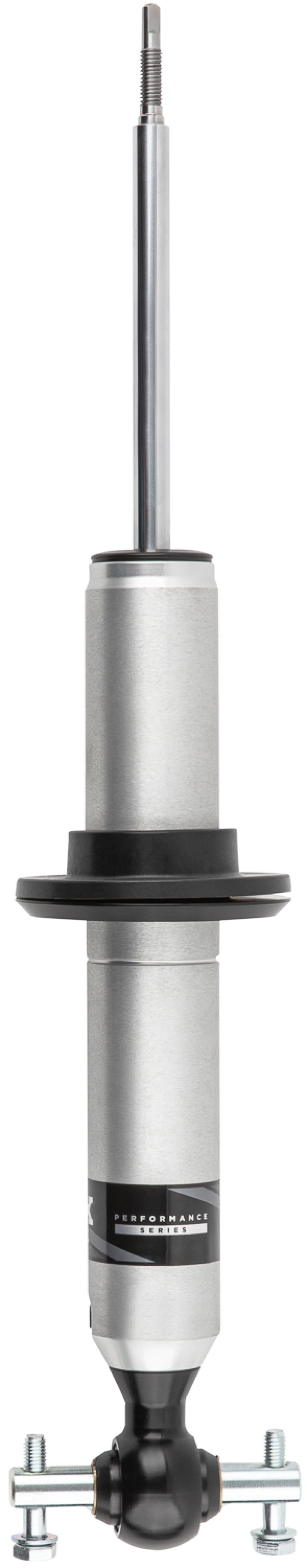

21-24 Ford F-150 V6 2.7L & 3.5L / V8 5.0L Fox 985-62-014 Performance Series 2.0 Front IFP 0-2.5in Lift Snap Ring Coil-Over

Fox 985-62-014 21-24 Ford F150 V6 2.7L & 3.5L / V8 5.0L Performance Series 2.0 Front IFP 0-2.5in Lift Snap Ring Coil-Over

If you are looking for a high-performance suspension upgrade for your 2021-2024 Ford F150, look no further than the Fox 985-62-014 Performance Series 2.0 Front IFP Snap Ring Coil-Over. This coil-over shock is a bolt-on solution that offers superior ride quality, handling, and durability for both on-road and off-road driving. You can easily adjust the ride height from 0 to 2.5 inches using the snap ring system, and reuse your stock spring and mounting hardware for a hassle-free installation. The Fox 985-62-014 coil-over features a 2-inch diameter aluminum body that resists rust and dissipates heat, an internal floating piston (IFP) that separates the shock oil from the nitrogen gas, and a race-developed high-flow piston design that provides optimal damping performance. Whether you are towing, hauling, cruising, or crawling, the Fox 985-62-014 coil-over will give you the confidence and comfort you need to enjoy your F150 to the fullest.

Key Features:

• 2-inch diameter impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body
• Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
• Black-anodized, CNC-machined 6061-T6 billet aluminum components
• 5/8 inch hard chrome plated heat-treated alloy steel shaft
• Application specific valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• Quiet nitrile rubber bushings for increased suspension articulation
• Ride height preload ring for easy adjustment from 0 to 2.5 inches of lift
• Reuses stock spring and mounting hardware

Benefits:

• Improves on-road comfort and off-road capability
• Levels or raises the front end of the F150 without compromising reliability or vehicle behavior
• Provides precise handling and consistent damping
• Increases shock capacity and reduces shock fade
• Enhances vehicle appearance and stance
• Compatible with most aftermarket suspension components
• Backed by a one-year limited warranty from Fox

Product Specs:

• Extended length: 22.500 inches
• Compressed length: 16.850 inches
• Travel: 5.650 inches
• Top mount: Reuses stock mounting hardware
• Bottom mount: Bar pin
• Fitment notes: Shock length too short for Tremor | Excludes Raptor

Install Difficulty Level:

• The installation of the Fox 985-62-014 coil-over is easy and can be done in about an hour per side with basic hand tools and a floor jack. No cutting, drilling, or welding is required. You will need to remove the stock shock and coil spring assembly, transfer the spring and the upper mount to the new coil-over, and install the coil-over in the reverse order. You can adjust the ride height by moving the snap ring to the desired groove on the shock body. The installation guide provides detailed instructions and illustrations for the installation process.

Vehicle Fitment:

• The Fox 985-62-014 coil-over fits the following vehicles:

  • 2021-2024 Ford F150 2WD with V6 2.7L, V6 3.5L, or V8 5.0L engine
  • Does not fit Hybrid, Tremor, or Raptor models

If you have any questions about this product or to report product description inaccuracies, contact the MPT Performance experts at (407) 636-7077 or by email.
