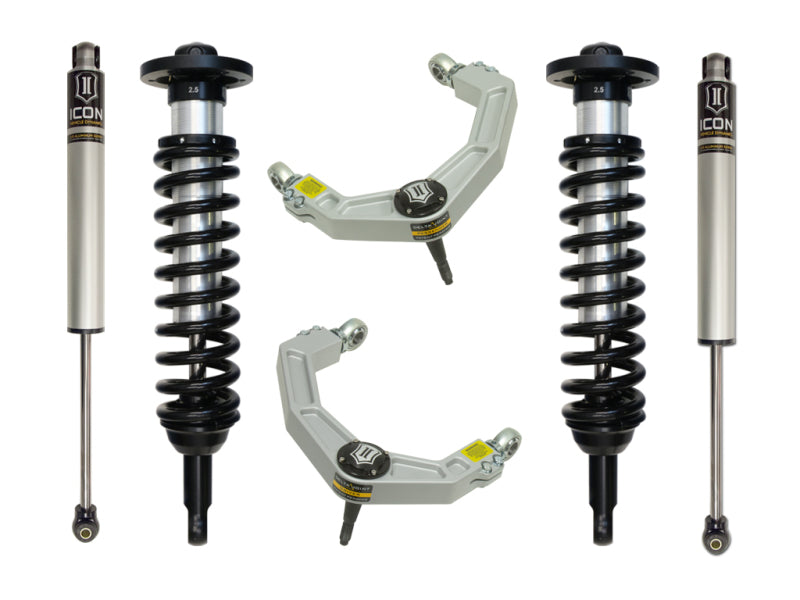

09-13 Ford F-150 4WD ICON K93002 0-2.63" Lift, Stage 2 Suspension System, Billet UCA

The ICON K93002 Stage 2 Suspension System enhances 2009-2013 Ford F-150 4WD performance with adjustable 2.5” coilovers, billet upper control arms, and 2.0 monotube rear shocks. Perfect for off-road enthusiasts, it offers increased wheel travel, strength, and ride quality, all while supporting larger tires and improving vehicle handling.

Top Features

  • 0-2.63” adjustable lift
  • Billet upper control arms for strength and durability
  • 2.5” coilovers with internal reservoirs
  • 2.0 monotube rear shocks for balanced performance
  • 100% bolt-on installation—no cutting or welding required

Vehicle Fitment

  • Year Range: 2009-2013
  • Make: Ford
  • Model: F-150
  • Engine: Compatible with all 4WD models
Vendor: ICON
SKU: ICOK93002
Availability: (Special Order Item)
$ 3,481.56 USD
On-Sale $ 3,481.56 USD
Normally
Better hurry, only 0 left in stock.

Secure Shopping with Hassle Free Returns

Free Shipping on orders over $149

10 customers are viewing this product
  • More Power Tuning
  • More Power Tuning

Proposition65 Warning: Cancer and Reproductive Harm

09-13 Ford F-150 4WD ICON K93002 0-2.63" Lift, Stage 2 Suspension System, Billet UCA

The ICON K93002 Stage 2 Suspension System is designed for drivers seeking maximum performance and durability for their 2009-2013 Ford F-150 4WD. With a focus on increasing wheel travel and damping ability, this suspension system dramatically improves vehicle control and ride quality both on and off the road. The system features 2.5” coilover shocks with internal reservoirs for superior cooling and ICON-engineered Eibach coil springs, offering a refined vehicle feel throughout the travel range. Adjustable from 0-2.63” of lift, it accommodates larger wheel and tire combinations, giving your truck enhanced clearance and capability. Billet upper control arms (UCA) provide added strength and durability, while maintaining factory alignment specs and increasing caster for improved handling. The 2.0 Aluminum Series monotube rear shocks are engineered with vehicle-specific valving to ensure a balanced, consistent performance from front to rear. Perfect for those who demand enhanced performance, whether on the trail or the highway.

Key Features

  • 0-2.63” adjustable lift to accommodate larger wheels and tires
  • Billet upper control arms (UCA) for increased strength, durability, and improved alignment
  • 2.5” coilovers with internal reservoirs for optimal performance and cooling
  • ICON-engineered Eibach coil springs for improved vehicle feel through the entire travel range
  • 2.0 monotube rear shocks with vehicle-specific valving for balanced damping
  • Patented Delta Joint in UCA for greater durability and angularity
  • 100% bolt-on system—no drilling, cutting, or welding required

Benefits

  • Increased wheel travel and ride quality over stock without affecting towing capacity
  • Adjustable coilovers provide flexibility for larger tire fitment and lift customization
  • Billet UCA ensures strength and maintains factory alignment, improving handling
  • Delta Joint in UCA combines the durability of a ball joint and the performance of a uniball
  • Improved vehicle control on and off the road, perfect for off-road enthusiasts
  • Easy bolt-on installation—no modification needed
  • Backed by ICON’s industry-leading warranty for confidence in long-term durability

Product Specs

  • Lift Range: 0-2.63”
  • Front Coilovers: 2.5” with internal reservoirs
  • Rear Shocks: 2.0 monotube with IFP technology
  • Billet Upper Control Arms (UCA): CNC-machined from 6061 aircraft-grade aluminum
  • Rear Shock Shaft: 5/8” polished nitro-steel for added strength and durability
  • Shock Body: Corrosion-resistant CAD-plated with 7/8” shaft
  • Components: FK Rod End bearings for reduced deflection and improved longevity
  • Installation: 100% bolt-on design with no cutting or welding required

Install Difficulty Level

The installation process for the ICON K93002 Stage 2 Suspension System is straightforward, typically taking around 4-6 hours. Thanks to the bolt-on design, no drilling, cutting, or welding is necessary. This system is ideal for those with basic mechanical skills and does not require modifications to your vehicle.

Vehicle Fitment

  • Year Range: 2009-2013
  • Make: Ford
  • Model: F-150
  • Engine: Compatible with all 4WD models

Note:

  • OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • Ships in multiple boxes

For any questions about this product or to report product description inaccuracies, contact the MPT Performance experts at (407) 636-7077 or by email.

Shipping Policy

MPT is proud to offer free shipping on most orders over $149.

  • Free shipping applies only to the contiguous United States. Shipping and handling charges will apply to orders outside the contiguous US, and the buyer is responsible for any duty fees or taxes their home country may charge to import goods.
  • With free shipping, we will choose the best shipping method for your order. We use all major carriers, including USPS, FedEx, UPS, and DHL.

Turnaround Times:

  • MPT Tunes have a standard turnaround time of 2-3 business days, beginning once we receive your MPT Tune Form.
  • We do not process orders on weekends or observed holidays, which do not count as business days.
  • Physical items that are in stock at MPT and ordered by 4PM EST will be shipped the same day. Orders placed after 4PM EST will be processed on the following business day.

Special Considerations:

  • Items not stocked at our location will follow the same processing times but may experience lead-time delays and could incur additional charges. Shipping methods may vary for these items based on what was paid and the requested delivery speed. If you need an item by a specific deadline, please contact an MPT Expert.
  • SCT Tuner Orders with the Prioritized Order option must have their tune forms submitted by 3PM EST to be completed the same day. Forms submitted after this time will be processed the next business day.
  • Orders will ship to the billing address listed on your order. If paying by credit or debit card, we can only ship to the billing address. Contact an MPT Expert for assistance if you need a different shipping address.

MPT Performance Returns and Refund Policy

A Return Authorization Number is required for all returns. Please contact an MPT Expert to obtain an RA # before sending anything back to us for any reason.

MPT tuning charges and license fees are Non-Refundable. The sale is final when MPT has sent the tune file over email. This includes both new tune purchases and tune updates.

Products other than MPT tunes, digital products, and MPT decals may be returned within 30 days for any reason, provided that the product has not been installed and is in brand new, unused condition with the original packaging. Once a product has been installed it is non-refundable. We reserve the right to deny the return, should the product be received and it display signs of installation or unmentioned damage.

For vehicle programmers/tuners, the vehicle must be returned to stock if a program was installed. If a tuning device is returned and has not been returned to stock, a refund will not be issued, and your tuner will not be sent back without a shipping and handling fee.

The customer is responsible for all shipping charges incurred during the return process.

Amount Refunded:
•Returns post marked before 30 days from the date the item was received will be refunded the purchase price, minus a 25% restocking fee and the cost of shipping.
After 30 days, all sales are Final.
•Shipping charges along with any package insurance are non-refundable. If your purchase was shipped with our Free Shipping option, the cost of the shipping will be subtracted from the total refund amount.

HP Tuners Credits are assigned to the HP Tuners product with the submitted serial number and cannot be transferred. Once you load a tune to your vehicle with the RTD, these credits are Non-Refundable.

Digital products and files that have no ability to be taken back physically, such as an SCT Tuner Unlock, are Non-Refundable.

nGauge Tune License Fee is included in your initial purchase of MPT tunes for the nGauge. This fee is factored into the price of the tunes and becomes Non-Refundable when the stock file has been emailed to MPT.

MPT Decals are Non-Refundable, once they have been received by the customer.

Year Make Model Submodel
2009-2013 Ford F-150 FX4
2009-2013 Ford F-150 King Ranch
2009-2013 Ford F-150 Lariat
2011 Ford F-150 Lariat Limited
2013 Ford F-150 Limited
2009-2013 Ford F-150 Platinum
2009-2013 Ford F-150 STX
2010-2013 Ford F-150 SVT Raptor
2009-2013 Ford F-150 XL
2009-2013 Ford F-150 XLT
