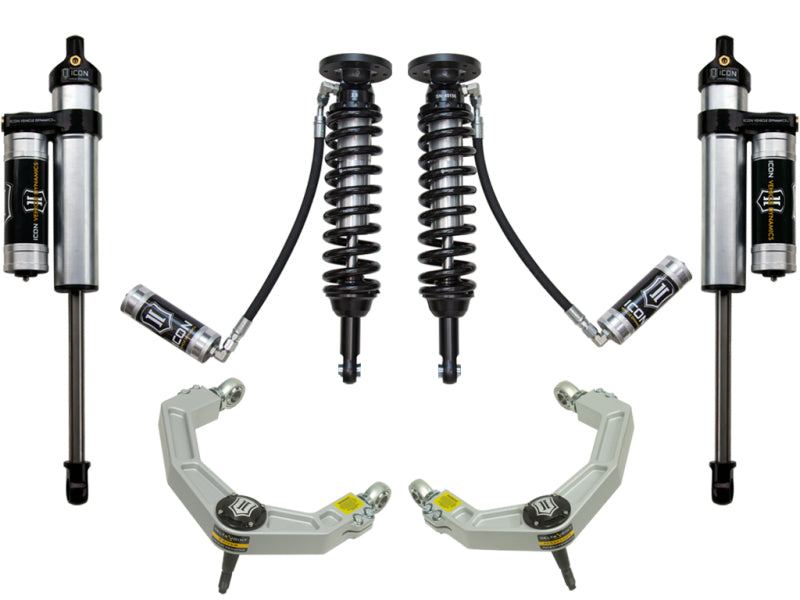

09-13 Ford F-150 4WD ICON K93004 1.75-2.63" Lift, Stage 4 Suspension System, Billet UCA

09-13 Ford F-150 4WD ICON K93004 1.75-2.63" Lift, Stage 4 Suspension System, Billet UCA

The ICON Vehicle Dynamics 2009-2013 Ford F-150 4WD Stage 4 Suspension System is engineered for drivers who demand the highest level of performance from their truck, both on and off-road. This system maximizes wheel travel, damping ability, and vehicle control, offering an exceptional ride in nearly every situation. ICON’s expert engineers have designed this system to ensure that it delivers superior ride quality, handling, and off-road capability while maintaining factory towing capacity. Whether you’re tackling rocky trails or cruising down the highway, this suspension system will inspire confidence behind the wheel.

Featuring adjustable 2.5” coilover shocks with external reservoirs for exceptional cooling properties, this kit helps prevent overheating and ensures consistent performance under tough conditions. Paired with Eibach coil springs, the ICON K93004 provides superior vehicle feel throughout the suspension travel range. The height-adjustable coilovers offer between 1.75-2.63" of lift, allowing you to fit larger, more aggressive wheel and tire combinations. The system’s billet aluminum upper control arms are engineered to withstand the demands of both off-road and daily driving, enhancing durability while maintaining factory alignment specs. ICON’s patented Delta Joint design offers the perfect balance of durability, performance, and articulation, making it the most robust solution available for your F-150.

Key Features

• Designed for 2009-2013 Ford F-150 4WD models to maximize performance.
• Includes ICON's vehicle-specific tuned 2.5” coilover shocks with external reservoirs for better cooling and consistent performance.
• Adjustable coilovers provide 1.75-2.63" of lift to accommodate larger wheels and tires.
• Billet aluminum upper control arms for superior strength, durability, and alignment improvement.
• Patented Delta Joint technology for enhanced articulation and noise-free operation.
• 2.5 Aluminum Series rear shocks with one-piece extruded aluminum cylinders for excellent corrosion resistance and consistent damping.
• 6061 aircraft-grade aluminum CNC-machined components for optimal precision.
• Corrosion-resistant CAD plated coilover shock bodies with 7/8" shafts.
• FK Rod End bearings provide extended longevity and minimal deflection.
• Bolt-on design—no cutting or welding required for installation.

Benefits

• Improved off-road capability with increased wheel travel and enhanced damping.
• Smooth ride quality over stock suspension, with no sacrifice in towing capacity.
• Reduced shock fade during extended off-road use, thanks to the external reservoir system.
• Allows for larger, more aggressive wheel and tire setups, giving your truck a more aggressive stance.
• Superior strength and durability, with components designed for long-term use.
• Increased alignment geometry and caster over stock, improving steering control.
• Noise-free operation and longevity with the Delta Joint design.
• Easy bolt-on installation with no cutting or welding, making it a DIY-friendly upgrade.
• Backed by a limited warranty for added peace of mind.

Product Specifications

• Lift Height: Adjustable 1.75-2.63"
• Front Shocks: 2.5” ICON coilovers with external reservoir
• Rear Shocks: 2.5 Aluminum Series Piggyback rear shocks
• Coil Springs: ICON-engineered Eibach coil springs
• Upper Control Arms: Billet aluminum with ICON’s patented Delta Joint
• Material: 6061 aircraft-grade aluminum, steel components, corrosion-resistant coatings
• Shock Bodies: CAD plated with 7/8” shafts
• Bearings: FK Rod End bearings for enhanced longevity
• Fitment: Bolt-on installation (no cutting or welding required)

Install Difficulty Level
Installing the ICON K93004 1.75-2.63" Lift, Stage 4 Suspension System is relatively straightforward and can be completed in approximately 4-6 hours by someone with basic mechanical knowledge and the proper tools. The system features a bolt-on design, so no cutting or welding is required, making it a suitable option for those looking for a DIY-friendly upgrade.

Vehicle Fitment

• Year Range: 2009-2013
• Make: Ford
• Model: F-150
• Engine: All 4WD configurations

Note:

For any questions about this product or to report inaccuracies in the product description, contact the MPT Performance experts at (407) 636-7077 or by email.
