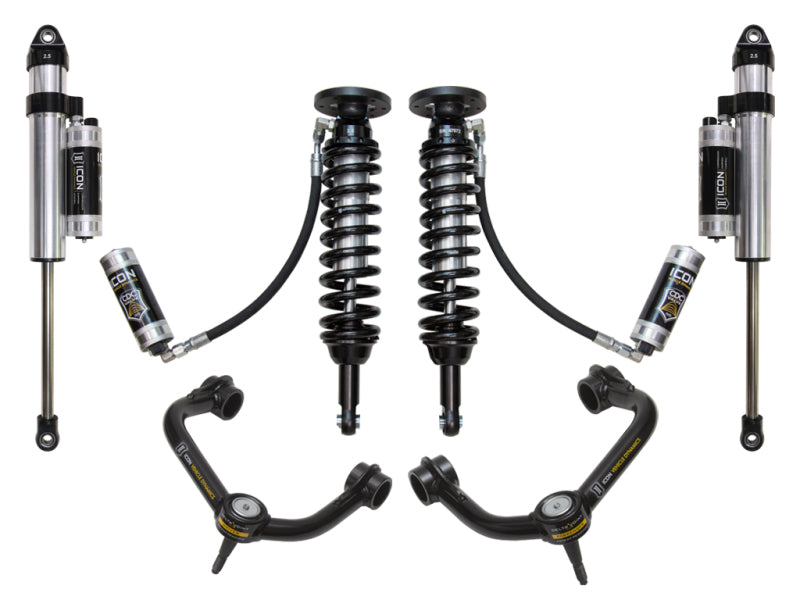

09-13 Ford F-150 4WD ICON K93005T 1.75-2.63" Lift Stage 5 Suspension System, Tubular UCA

The ICON 09-13 Ford F-150 4WD Stage 5 Suspension System maximizes off-road and on-road performance with adjustable lift, superior damping, and durable components. Featuring high-quality shocks, tubular control arms, and a patented Delta Joint, it offers improved strength and vehicle control.

Top Features

  • Adjustable 1.75-2.63" lift
  • Vehicle-specific 2.5" coilover shocks
  • ICON CDCV front and rear
  • Tubular upper control arms
  • Patented Delta Joint for enhanced articulation
  • Bolt-on installation, no cutting required

Vehicle Fitment

  • Year Range: 2009-2013
  • Make: Ford
  • Model: F-150
  • Engine: Compatible with 4WD models
Vendor: ICON
SKU: ICOK93005T
Availability: (Special Order Item)
$ 4,535.55 USD
On-Sale $ 4,535.55 USD
Normally
Better hurry, only 0 left in stock.

Secure Shopping with Hassle Free Returns

Free Shipping on orders over $149

10 customers are viewing this product
  • More Power Tuning
  • More Power Tuning

Proposition65 Warning: Cancer and Reproductive Harm

09-13 Ford F-150 4WD ICON K93005T 1.75-2.63" Lift Stage 5 Suspension System, Tubular UCA

The ICON Vehicle Dynamics 2009-2013 Ford F-150 4WD Stage 5 Suspension System is the ultimate upgrade for drivers who demand the best in both on and off-road performance. Designed to maximize wheel travel and damping capabilities, this system enhances vehicle control and ride quality across all terrains. The system includes ICON’s 2.5” coilover shocks, vehicle-specific tuned for superior ride performance, and adjustable from 1.75-2.63” of lift. Whether you're tackling challenging off-road trails or navigating daily commutes, this suspension system offers unrivaled durability and handling confidence. With ICON's advanced design, this system boosts your truck's potential while maintaining factory alignment and improving overall strength and performance.

Key Features

  • Height Adjustable Coilovers: 1.75-2.63" adjustable lift over stock to accommodate larger, more aggressive wheels and tires.
  • Vehicle-Specific Tuned Shocks: 2.5" coilover shocks with external remote reservoirs and ICON-engineered Eibach coil springs for enhanced cooling, damping, and overall ride quality.
  • CDC Valve Technology: Full compression tuneability with 10 settings from soft to hard for tailored ride characteristics.
  • Delta Joint: Patented ICON Delta Joint combines the durability of a ball joint with the articulation of a uniball, offering improved strength and angularity.
  • Tubular Upper Control Arms: Reinforced for additional strength, durability, and improved alignment geometry.
  • CNC Machined Components: Made from 6061 aircraft-grade aluminum for superior durability and precision.
  • Bolt-On Installation: No cutting or welding required for easy installation.

Benefits

  • Enhanced Ride Quality: Increased wheel travel and superior damping provide smoother performance, both off-road and on the highway.
  • Customization: Adjustable ride height allows you to fine-tune your suspension to meet specific driving needs.
  • Durability: Engineered for long-lasting performance with corrosion-resistant coatings and FK Rod End bearings for extended longevity.
  • Improved Strength and Alignment: Tubular UCA with Delta Joint improves suspension geometry, adding strength and maintaining factory alignment range.
  • Easy Installation: The bolt-on system simplifies installation, allowing for a hassle-free upgrade.
  • Reliable Performance: ICON's CDCV-equipped shocks provide consistent damping performance under any condition, maintaining optimal operating temperatures.
  • Warranty: Backed by ICON's warranty for long-term confidence and peace of mind.

Product Specs

  • Lift Height: 1.75-2.63" adjustable
  • System Type: Stage 5 suspension system
  • Shock Type: 2.5” coilover shocks with external remote reservoirs and ICON CDCV (Compression Damping Control Valve)
  • Rear Shocks: 2.5” Aluminum Series Piggyback rear shocks with CDCV
  • Material: High-strength 6061 aircraft-grade aluminum CNC machined components, corrosion-resistant CAD plated coilover shock bodies
  • Coil Springs: ICON-engineered Eibach coil springs for superior vehicle feel and performance
  • Compatibility: Specifically designed for 2009-2013 Ford F-150 4WD models
  • Other Features: FK Rod End bearings, one-piece extruded aluminum shock cylinders, and greaseable Delta Joint for noise-free operation

Install Difficulty Level Installing the ICON K93005T 1.75-2.63" Lift Stage 5 Suspension System is rated as moderate in difficulty. The system features a bolt-on design, which means there is no need for cutting or welding. With proper tools and a few hours of time, installation is straightforward and can be completed by those with intermediate mechanical skills. Expect installation to take approximately 3-5 hours. If you have any questions or need assistance, MPT Performance experts are available to support you throughout the process.

Vehicle Fitment

  • Year Range: 2009-2013
  • Make: Ford
  • Model: F-150
  • Engine: Compatible with 4WD models; check specific engine type for compatibility

Note:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • Ships in multiple boxes

For any questions or to report inaccuracies in the product description, contact MPT Performance experts at (407) 636-7077 or via email.

Shipping Policy

MPT is proud to offer free shipping on most orders over $149.

  • Free shipping applies only to the contiguous United States. Shipping and handling charges will apply to orders outside the contiguous US, and the buyer is responsible for any duty fees or taxes their home country may charge to import goods.
  • With free shipping, we will choose the best shipping method for your order. We use all major carriers, including USPS, FedEx, UPS, and DHL.

Turnaround Times:

  • MPT Tunes have a standard turnaround time of 2-3 business days, beginning once we receive your MPT Tune Form.
  • We do not process orders on weekends or observed holidays, which do not count as business days.
  • Physical items that are in stock at MPT and ordered by 4PM EST will be shipped the same day. Orders placed after 4PM EST will be processed on the following business day.

Special Considerations:

  • Items not stocked at our location will follow the same processing times but may experience lead-time delays and could incur additional charges. Shipping methods may vary for these items based on what was paid and the requested delivery speed. If you need an item by a specific deadline, please contact an MPT Expert.
  • SCT Tuner Orders with the Prioritized Order option must have their tune forms submitted by 3PM EST to be completed the same day. Forms submitted after this time will be processed the next business day.
  • Orders will ship to the billing address listed on your order. If paying by credit or debit card, we can only ship to the billing address. Contact an MPT Expert for assistance if you need a different shipping address.

MPT Performance Returns and Refund Policy

  • A Return Authorization Number (RA #) is required for all returns. Please contact an MPT Expert to obtain an RA# before sending anything back.
  • MPT tuning charges and license fees are non-refundable. The sale is final once MPT has sent the tune file via email, which applies to both new tune purchases and tune updates.

Returnable Products:

  • Products (other than MPT Tunes) may be returned within 30 days as long as they have not been installed and are in brand new, unused condition with original packaging. Installed products are non-refundable. MPT reserves the right to deny a return if the product shows signs of installation or damage.
  • Vehicle programmers/tuners that have loaded a tune onto a vehicle cannot be returned.

Refund Amounts:

  • Returns postmarked within 15 days of receipt will be refunded the purchase price minus the shipping cost MPT paid.
  • Returns postmarked between 16 and 30 days will be refunded the purchase price minus a 25% restocking fee and the shipping cost.
  • After 30 days, all sales are final.

Non-Refundable Items:

  • Shipping charges and any package insurance are non-refundable. If free shipping was applied to your purchase, the actual shipping cost will be subtracted from your refund.
  • HP Tuners Credits are non-refundable once they’ve been assigned to a device’s serial number, which occurs either during the purchase or upon completing the tune form.
  • Digital products like SCT Tuner Unlocks, HP Tuners Credits, or MPT Tunes cannot be refunded.
  • Decals/Stickers are non-refundable once received by the customer.
Year Make Model Submodel
2009-2013 Ford F-150 FX4
2009-2013 Ford F-150 King Ranch
2009-2013 Ford F-150 Lariat
2011 Ford F-150 Lariat Limited
2013 Ford F-150 Limited
2009-2013 Ford F-150 Platinum
2009-2013 Ford F-150 STX
2010-2013 Ford F-150 SVT Raptor
2009-2013 Ford F-150 XL
2009-2013 Ford F-150 XLT
