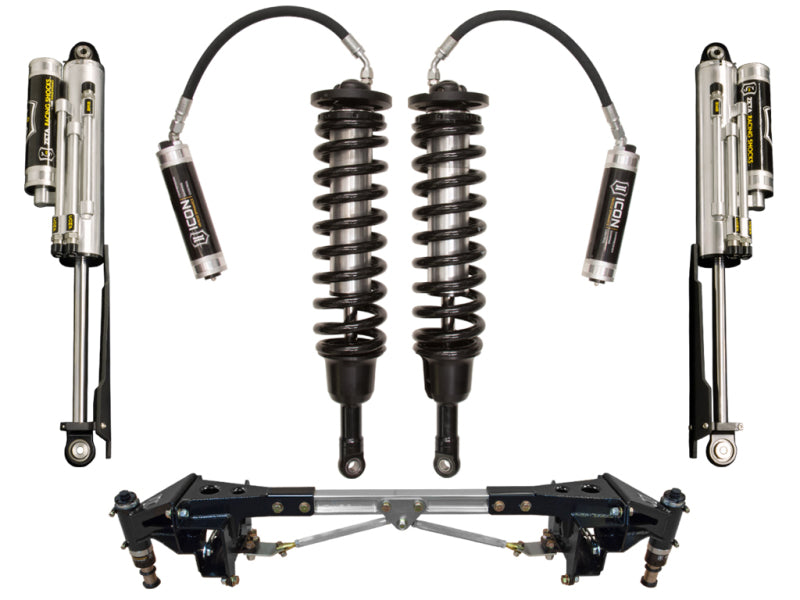

10-14 Ford Raptor ICON K93052 Stage 2 Suspension System

10-14 Ford Raptor ICON K93052 Stage 2 Suspension System

The ICON K93052 Stage 2 Suspension System delivers top-tier performance and durability, designed specifically for the 2010-2014 Ford Raptor. Featuring advanced technology and high-quality components, this suspension system offers a smooth, controlled ride both on-road and off-road. With a perfect blend of comfort and extreme durability, the ICON K93052 enhances ride quality, provides superior off-road capability, and ensures improved handling in challenging environments.

Key Features

• Front 3.0 Coil Over Shock:

  • 3.0 OEM replacement remote reservoir compression adjustable shocks for ultimate off-road performance.
  • Internal hydraulic bump zone designed for maximum control in the last 40% of travel, improving G-out control.
  • High-resolution compression adjuster offers fine-tuning adjustments for all terrain types.
  • Direct bolt-in installation to OEM locations for easy installation with optimal heat dissipation.
  • 10” remote reservoirs made of nitrogen-charged, CNC honed, hard anodized 6063-T832 aluminum.
  • Adjustable ride height from 1” to 3” of lift.
  • ICON-engineered Eibach 3 5/8” ID chrome silicon steel springs increase travel and performance.
  • Oversized 1” heavy-duty CNC machined shock shafts for durability.
  • Extended droop travel and increased overall performance on and off-road.

• Rear 3.0 Bypass Shock:

  • 3.0 OEM replacement piggyback reservoir Zeta 3 tube bypass rear shocks for superior off-road performance.
  • Detented adjustment knobs provide quick, tool-free adjustments.
  • High-resolution bypass valves allow for fine-tuning in rebound and compression.
  • CNC machined, welded bypass blocks increase fluid flow for enhanced performance.
  • Replaceable bypass tubes for easy replacement if damaged.
  • Direct bolt-in installation with easily accessible bypass adjustment knobs.
  • Engineered dampened valve stops for quieter, precise operation.
  • Multi-stage cad-plated finish with polished and anodized top caps and rod ends.

• Hydraulic Bump Stop System:

  • Designed for increased leaf spring clearance, ensuring no loss in up travel with stock or aftermarket springs.
  • Easy bolt-on installation without needing to remove the truck bed.
  • 6061 solid billet cross bar that is polished and anodized.
  • Hydro-pneumatic bump stop increases energy absorption with velocity-sensitive dampening.
  • Reduces rear-end kick and improves overall vehicle performance.
  • Clamshell brackets strengthen the frame in critical areas to prevent damage during extreme off-road use.
  • Increases frame rigidity and improves overall vehicle dynamics.

Benefits

• Exceptional control over rough terrain, with precise tuning options for any environment.
• Enhanced ride quality with superior bump control and smooth handling on and off-road.
• Increased vehicle stability with added ground clearance and durability.
• Seamless integration into the vehicle, making installation quick and easy.
• No compromises in comfort, ensuring a smooth ride even during extreme off-road conditions.
• Backed by ICON’s limited warranty, providing peace of mind with your purchase.

Product Specifications

• Size: Adjustable ride height from 1” to 3” of lift.
• Color: Black anodized finish for a sleek look and corrosion resistance.
• Material: High-strength aluminum, chrome silicon steel springs, and CNC-machined parts for durability.
• Included Components: Front and rear shocks, hydraulic bump stop system, hardware, and installation instructions.
• Shock Features: 1” heavy-duty shock shafts, 10” remote reservoirs, and high-resolution adjusters for superior performance.

Install Difficulty Level
Installation of the ICON K93052 Stage 2 Suspension System is relatively easy, requiring approximately 4-6 hours for completion. The system is designed to bolt directly into the OEM locations, and no welding or extensive modifications are necessary. The easy-to-adjust components and user-friendly design allow most experienced DIYers to install it themselves, though professional installation is recommended for optimal results.

Vehicle Fitment

• Vehicle Year Range: 2010-2014
• Make: Ford
• Model: Raptor
• Engine: 6.2L V8

Note:

For any questions about the ICON K93052 Stage 2 Suspension System or to report any discrepancies in the product description, contact the MPT Performance experts at (407) 636-7077 or by email.
