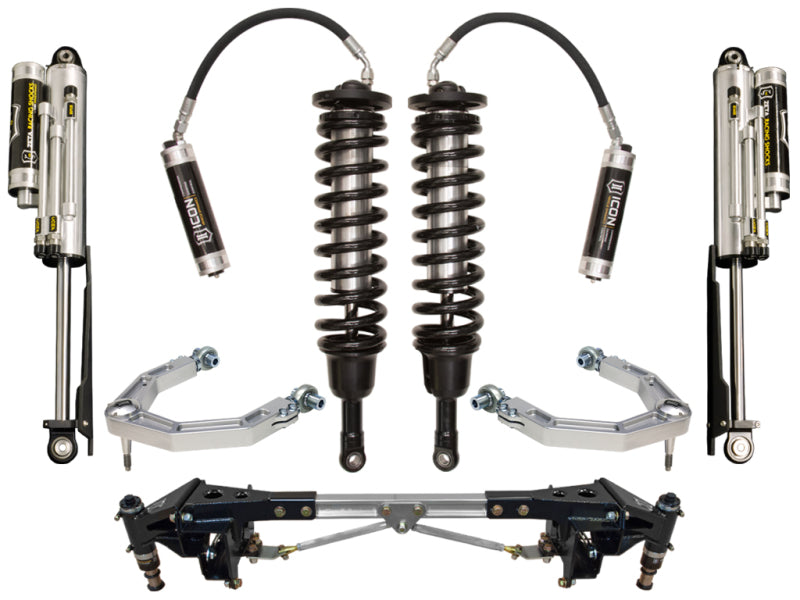

10-14 Ford Raptor ICON K93053 Stage 3 Suspension System

The ICON K93053 Stage 3 Suspension System enhances your 2010-2014 Ford Raptor’s off-road performance with advanced shock technology, adjustable ride height, and improved durability. Designed for tough terrain, it offers superior control, comfort, and stability, ensuring a smoother, more capable driving experience.

Top Features:

  • 3.0 front coilovers with adjustable compression
  • Rear Zeta 3 tube bypass shocks
  • Adjustable ride height (1” – 3” lift)
  • High-quality CNC machined components
  • Enhanced off-road control and performance
  • Easy, bolt-in installation
  • Durable aluminum construction

Vehicle Fitment:

  • Year Range: 2010-2014
  • Make: Ford
  • Model: Raptor
  • Engine: Fits all engine variants of the 2010-2014 Ford Raptor
Vendor: ICON
SKU: ICOK93053
Availability: Out Of Stock
$ 10,079.63 USD
On-Sale $ 10,079.63 USD
Normally
Better hurry, only 0 left in stock.

Secure Shopping with Hassle Free Returns

Free Shipping on orders over $149

10 customers are viewing this product
  • More Power Tuning
  • More Power Tuning

Proposition65 Warning: Cancer and Reproductive Harm

10-14 Ford Raptor ICON K93053 Stage 3 Suspension System

The ICON K93053 Stage 3 Suspension System is engineered to maximize the performance of your 2010-2014 Ford Raptor, offering improved off-road capability, handling, and durability. This system is designed to tackle the toughest terrains while maintaining superior comfort and stability on all surfaces. With precision-engineered components like the 3.0 front coilover shocks, Zeta 3 tube bypass rear shocks, and a high-quality hydraulic bump stop system, this suspension system delivers unmatched performance. Whether you're navigating rough trails or cruising on highways, the ICON Stage 3 Suspension System is the ultimate upgrade to push your Raptor to its full potential.

Key Features

Raptor Front 3.0 Coil Over Shock:

  • 3.0 OEM replacement remote reservoir compression adjustable front coilover shocks
  • Internal hydraulic bump zone designed for maximum G-out control in the last 40% of travel
  • Easy-to-adjust high-resolution compression adjuster for fine-tuning across all terrain types
  • Direct bolt-in to OEM location with optimum reservoir positioning for superb heat dissipation and protection
  • Nitrogen charged 6063-T832 aluminum 10” remote reservoirs, precision CNC honed and hard anodized
  • Adjustable ride height from 1” – 3” of lift
  • ICON-engineered Eibach 3 5/8” ID chrome silicon steel springs offering increased travel and performance
  • 12 PTFE lined bearings for maximum strength and durability
  • Oversized 1” heavy-duty CNC machined shock shafts
  • Extended droop travel for enhanced performance both on and off-road

Raptor Rear 3.0 Bypass Shock:

  • 3.0 OEM replacement piggyback reservoir Zeta 3 tube bypass rear shocks
  • Easy-to-adjust detented adjustment knobs for quick tool-free tuning
  • High-resolution bypass valves for noticeable fine-tune adjustments in rebound and compression
  • High-flow CNC machined welded bypass blocks that increase fluid flow for enhanced performance and high-definition tuning
  • Replaceable bypass tubes for easy re-positioning if damaged
  • Direct bolt-in to OEM location with easily accessible bypass adjustment knobs
  • Engineered dampened valve stops for quieter and more precise operation, eliminating the standard loud "clicking" noise found with other brands
  • Multi-stage cad-plated finish with polished and anodized top caps/rod ends
  • UHMH machined shaft & rod end protective shin guards

Raptor Upper Control Arms:

  • 6061 billet aluminum construction, precision CNC machined for maximum strength
  • Patented Delta Joint (U.S. Patent No. 10,731,700) for superior articulation and performance
  • Easily adjustable on the vehicle for perfect wheel alignments
  • High precision CNC machined pin ensures OEM-like fitment
  • RSMX PTFE lined 7/8” rod ends with O-ring sealed billet dust covers

Hydraulic Bump Stop System:

  • Increased leaf spring clearance for no loss in up travel with stock or aftermarket springs
  • Easy bolt-on installation without removing the truck bed
  • 6061 solid billet cross bar, polished and anodized for added durability
  • Bump stop striker pad requires no leaf spring disassembly
  • Hydro-pneumatic bump stop with velocity-sensitive damping for enhanced energy absorption
  • Reduces rear-end kick and improves overall suspension performance
  • Clamshell brackets for frame reinforcement in critical areas, preventing damage from extreme off-road conditions
  • Cross member and tension rods stabilize frame rails to prevent twisting during hard impacts, enhancing overall vehicle rigidity and dynamics
  • Pre-tuned and nitrogen charged for most Ford Raptors

Benefits

  • Superior Off-Road Performance: Enjoy enhanced off-road handling with extended droop travel, adjustable ride height, and optimized heat dissipation to keep your suspension running at peak performance.
  • Precision Control: With adjustable compression and bypass tuning, this system offers fine-tuned adjustments for all types of terrain, ensuring smooth control across different driving conditions.
  • Increased Durability: Constructed with high-strength materials such as billet aluminum, CNC machined parts, and robust shock components, this suspension system is built to last even in the most demanding off-road environments.
  • Enhanced Comfort: The hydraulic bump stop system reduces rear-end kick and offers smoother rides, even under extreme loads, without compromising the vehicle's on-road manners.
  • Easier Installation: The system bolts directly into OEM locations, with no need for modifications, and is designed for simple installation and future compatibility with other ICON products.
  • Warranty: Backed by ICON's limited lifetime warranty, ensuring the system will stand up to the test of time and extreme conditions.

Product Specs

  • Product Type: Suspension system (Stage 3)
  • Front Shocks: 3.0 remote reservoir compression adjustable coilover shocks
  • Rear Shocks: 3.0 piggyback reservoir Zeta 3 tube bypass shocks
  • Material: Billet aluminum, chrome silicon steel springs, high-quality CNC machined parts
  • Color: Black with ICON branding, cad-plated finish, anodized rod ends
  • Adjustability: Adjustable ride height (1” – 3”) and fine-tune compression and bypass tuning
  • Weight: Approximately 90 lbs (total kit)
  • Fitment: Direct OEM bolt-in with no modifications required
  • Included Components: Front and rear shocks, upper control arms, hydraulic bump stop system

Install Difficulty Level

Installing the ICON K93053 Stage 3 Suspension System is designed to be straightforward with basic tools and mechanical knowledge. The system can be installed in 4-6 hours, making it an ideal option for experienced DIYers or professional mechanics. With no major modifications required, this suspension system provides an easy upgrade for your Raptor.

Vehicle Fitment

  • Year Range: 2010-2014
  • Make: Ford
  • Model: Raptor
  • Engine: Fits all engine variants of the 2010-2014 Ford Raptor

Note:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • APPLICATION NOTE #61: Aftermarket Exhaust May Need To Be Slightly Modified For Use With This Kit
  • Ships in multiple boxes
