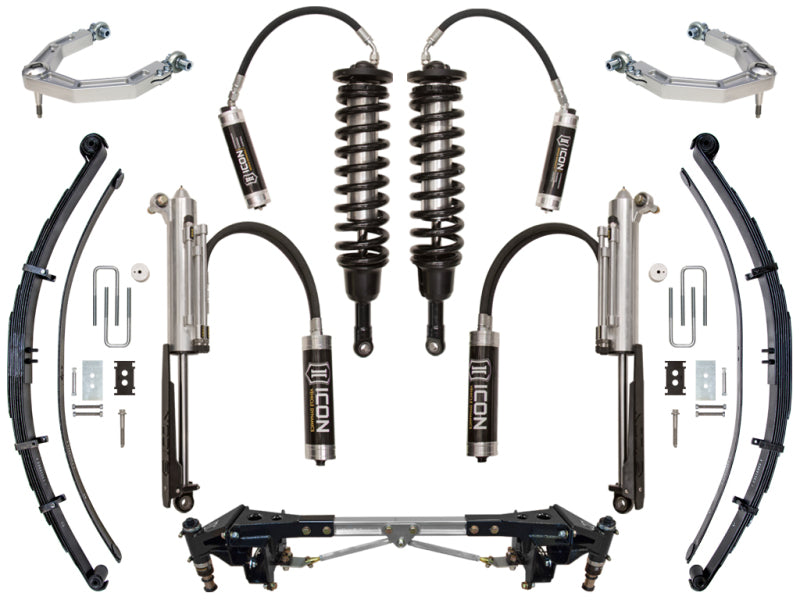

10-14 Ford Raptor ICON K93054 Stage 4 Suspension System

10-14 Ford Raptor ICON K93054 Stage 4 Suspension System

The ICON K93054 Stage 4 Suspension System is designed to take your 2010-2014 Ford Raptor to the next level of off-road performance and handling. This complete suspension system delivers a perfect balance of comfort, durability, and advanced adjustability, ensuring a superior driving experience whether you're on rough trails or smooth highways. With a focus on increased wheel travel, precise shock adjustments, and durable components, the ICON Stage 4 kit provides everything needed for ultimate off-road performance.

Key Features

Raptor Front 3.0 Coilover Shock:

• 17-4 Stainless Steel Taper Adapter Pin for OEM-like fitment
• O-ring sealed dust cover for superior protection
• 3.0 OEM replacement remote reservoir compression adjustable front coilover shocks

Hydraulic Bump Stop System:

• Increases leaf spring clearance with no loss in up travel for both stock and aftermarket springs
• Easy bolt-on installation; no need to remove the truck bed
• 6061 solid billet crossbar polished & anodized for enhanced durability
• Bump stop striker pad design eliminates need for leaf spring disassembly
• Hydro-pneumatic bump stop absorbs more energy the faster it's hit, reducing rear end kick and improving performance
• Oversized 1” CNC machined shock shafts for better strength and energy absorption
• Internal hydraulic bump zone for maximum G-out control in the last 40% of travel
• Cross member and tension rods stabilize frame rails, prevent twisting, and increase rigidity

Raptor RXT Multi-Rate Leaf Spring:

• Extended droop travel for improved overall performance on and off-road
• 3 adjustable spring rates for custom setups
• Triple military wrap front eyelet and rear half wrap for maximum durability
• OE style bonded rubber bushings for maintenance-free, quiet operation
• Bump stop extensions included for ease of installation without aftermarket bump stop kits
• Easy-to-adjust high-resolution compression adjuster for fine-tuning across terrains

Raptor RXT Rear 3.0 Bypass Shock:

• 3.0 bypass rear shock with remote reservoir for maximum performance

Raptor Upper Control Arms:

• Unique side-mounted upper eyelet for increased up-travel using factory mount locations
• Anti-Wobble Link prevents bypass tubes from interfering with leaf spring or tire
• Adjustable detented knobs for quick, tool-free shock adjustments
• High-flow CNC machined bypass blocks for improved fluid flow and performance
• 6061 billet aluminum construction for high strength and precision

Benefits

• Enhanced Off-Road Handling: With upgraded front and rear shocks, leaf springs, and hydraulic bump stops, this system ensures maximum wheel travel, control, and stability, even in the harshest conditions.
• Improved Comfort & Ride Quality: Designed to maintain comfortable on-road manners while providing sufficient damping under extreme load, reducing roughness and rear-end kick.
• Customizable Performance: The adjustable settings on the front coilovers, rear shocks, and leaf springs let you fine-tune your ride to match your specific needs, whether on trails or highways.
• Durability & Strength: Constructed from high-strength 6061 billet aluminum, stainless steel, and CNC-machined parts, this suspension system is built to withstand years of hard off-road use.
• Easy Installation: With bolt-on components and no need to remove the truck bed, the system is designed for a straightforward installation process.
• Warranty Coverage: ICON’s limited lifetime warranty backs the system, ensuring long-lasting reliability and peace of mind.

Product Specs

• Part Number: K93054
• Color: Black
• Material: High-strength 6061 billet aluminum, 17-4 stainless steel, CNC-machined components
• Fitment: 2010-2014 Ford Raptor
• Shock Type: ICON V.S. 3.0 Remote Reservoir Coilovers and 3.0 Bypass Shocks
• Lift Capacity: Adjustable from 1” – 3”
• Weight: Approximately 200 lbs (depending on configuration)

Install Difficulty Level

Installing the ICON K93054 Stage 4 Suspension System is relatively easy for those with moderate mechanical experience. The system is designed to bolt directly into OEM locations, with no need to remove the truck bed. With the right tools and a bit of time, expect the installation to take around 4-6 hours.

Vehicle Fitment

• Year Range: 2010-2014
• Make: Ford
• Model: F-150 Raptor
• Engine: All engine types

For more information or assistance, contact the MPT Performance experts at (407) 636-7077 or via email.
