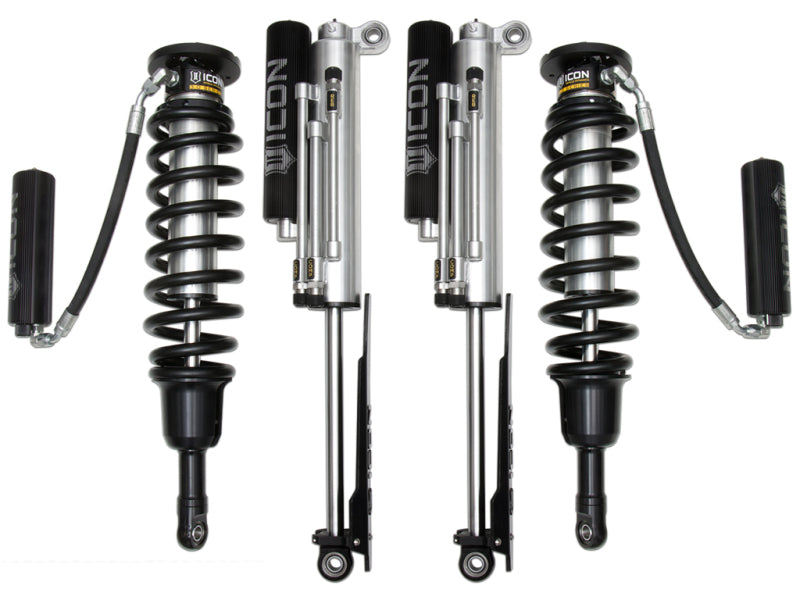

17-20 Ford Raptor ICON K93151 1-3" Lift, 3.0, Stage 1 Suspension System

This ICON Stage 1 Suspension System offers adjustable front lift, increased wheel travel, and superior off-road performance for the 2017-2020 Ford Raptor. Featuring 3.0 Series coilovers and bypass shocks, it enhances ride quality and bottom-out resistance, making it ideal for tackling any terrain.

Top Features

  • Adjustable 1-3” front lift
  • 50% increase in damping over OE shocks
  • 10 adjustable settings for compression damping
  • Multi-stage Bump Zone for improved bottom-out resistance
  • 12” finned aluminum reservoirs for better cooling
  • Bolt-on installation, no major modifications needed

Vehicle Fitment

  • Year Range: 2017-2020
  • Make: Ford
  • Model: Raptor
  • Engine: All engine variants
Vendor: ICON
SKU: ICOK93151
Availability: (Special Order Item)
$ 7,740.05 USD
On-Sale $ 7,740.05 USD
Normally
Better hurry, only 0 left in stock.

Secure Shopping with Hassle Free Returns

Free Shipping on orders over $149

10 customers are viewing this product
  • More Power Tuning
  • More Power Tuning

Proposition65 Warning: Cancer and Reproductive Harm

17-20 Ford Raptor ICON K93151 1-3" Lift, 3.0, Stage 1 Suspension System

The ICON K93151 1-3" Lift, 3.0, Stage 1 Suspension System is engineered to take your 2017-2020 Ford Raptor to the next level, whether you're hitting rugged off-road terrain or cruising on highways. After extensive R&D and real-world testing, ICON has designed this suspension system to improve ride quality, increase wheel travel, and provide superior off-road performance. The system features adjustable 3.0 coilovers and a bypass shock kit, offering advanced damping control, increased suspension travel, and better bottom-out resistance. With high-quality components, easy-to-adjust settings, and a focus on performance, this kit is a top-tier upgrade for your Raptor.

Key Features

  • Adjustable 1-3" front lift for improved ground clearance and larger tire fitment
  • 3.0 Series coilovers with increased wheel travel and vehicle-specific valving for exceptional ride quality
  • 50% increase in damping ability over OE shocks for superior off-road performance
  • Compression Damping Control (CDC) with 10 adjustability settings for versatile tuning
  • ICON’s multi-stage hydraulic Bump Zone for enhanced bottom-out resistance
  • 12” finned aluminum reservoirs with increased surface area for better cooling
  • Precision-engineered coil springs and 1” shock shafts for added strength and durability
  • Easy bolt-on installation with no major modifications required

Benefits

  • Enhanced on-road stability: Reduces body roll and improves overall vehicle stability during cornering and high-speed driving
  • Superior off-road capability: Optimized for extreme conditions with increased wheel travel and 3.0 bypass shock technology
  • Versatile tuning: 10 adjustable settings for compression damping control, perfect for various driving styles and terrains
  • Better bottom-out resistance: The Bump Zone technology ensures smooth travel even in harsh conditions
  • Durability: High-quality materials ensure long-lasting performance, backed by a lifetime warranty on ICON-engineered coil springs
  • Simplified installation: No major modifications needed, designed to fit into OEM shock locations

Product Specs

  • Front Lift: Adjustable from 1-3"
  • Coilovers: 3.0 Series with vehicle-specific valving
  • Shock Type: 3-tube bypass design with multi-stage hydraulic Bump Zone
  • Reservoirs: 12" finned aluminum for enhanced cooling
  • Coil Spring Design: Barreled for maximum travel and efficient packaging
  • Material: CNC-machined 1” shock shafts, CAD plated shock body with hard anodized piston and top cap
  • Warranty: ICON coil springs guaranteed for life against sagging or breakage

Install Difficulty Level
Installation of the ICON K93151 suspension system is designed to be straightforward. With the easy-to-install bolt-on design, most users can complete the installation in approximately 4-5 hours. For those without suspension experience, professional installation is recommended.

Vehicle Fitment

  • Year Range: 2017-2020
  • Make: Ford
  • Model: Raptor
  • Engine: All engine variants

Note:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • TECH NOTE: 2019-2020 VEHICLES WITH FACTORY LIVE VALVE SHOCKS WILL NEED AN ICON DAMPER INTERFACE DEVICE (PN: 95199) TO ALLOW THE VEHICLE DRIVE MODES TO OPERATE CORRECTLY WITH THE OE SHOCKS REMOVED.
  • Ships in multiple boxes
