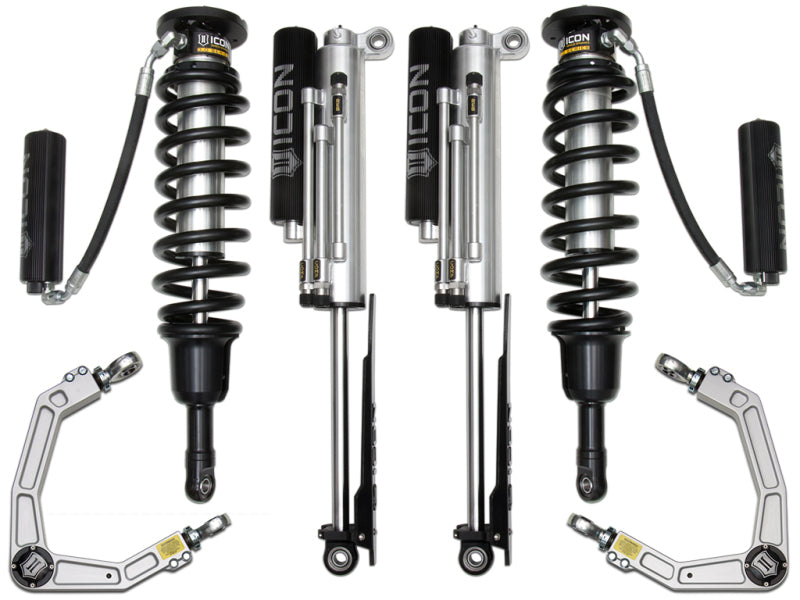

17-20 Ford Raptor ICON K93152 1-3" Lift, 3.0, Stage 2 Suspension System
17-20 Ford Raptor ICON K93152 1-3" Lift, 3.0, Stage 2 Suspension System
17-20 Ford Raptor ICON K93152 1-3" Lift, 3.0, Stage 2 Suspension System

17-20 Ford Raptor ICON K93152 1-3" Lift, 3.0, Stage 2 Suspension System

Upgrade your 2017-2020 Ford Raptor with the ICON K93152 Stage 2 Suspension System. Offering 1-3” adjustable lift, superior ride quality, and increased off-road capability, this system features ICON 3.0 shocks and 3-Tube bypass shocks for optimal performance. Easy installation and durable design ensure maximum control on any terrain.

Top Features

  • Adjustable 1-3” front lift
  • ICON 3.0 Series coilovers and 3-Tube bypass shocks
  • 10" (coilover) and 12" (bypass) finned aluminum reservoirs
  • Easy-to-adjust compression damping control with 10 settings
  • Multi-stage hydraulic “Bump Zone” for improved bottom-out resistance
  • Fully rebuildable and serviceable

Vehicle Fitment

  • Make: Ford
  • Model: Raptor
  • Year Range: 2017-2020
  • Engine: All engine types
Vendor: ICON
SKU: ICOK93152
Availability: (Special Order Item)
$ 9,400.00 USD
On-Sale $ 9,400.00 USD
Normally
Better hurry, only 0 left in stock.
Questions? Ask an MPT Expert
Lowest Price Guarantee
Add to wishlist

Secure Shopping with Hassle Free Returns

Free Shipping on orders over $149

10 customers are viewing this product
  • More Power Tuning
  • More Power Tuning

Proposition65 Warning: Cancer and Reproductive Harm

Description

17-20 Ford Raptor ICON K93152 1-3" Lift, 3.0, Stage 2 Suspension System

The ICON K93152 Stage 2 Suspension System is the ultimate upgrade for your 2017-2020 Ford Raptor, designed to deliver superior off-road capability, enhanced ride quality, and rugged durability. Featuring 3.0 Series Coilover and 3-Tube Bypass Shocks, this system provides adjustable lift heights of 1-3” to tackle any terrain, from highways to the harshest trails. With vehicle-specific valving, adjustable compression damping control, and increased wheel travel, the ICON system ensures a smooth ride while maintaining optimal performance in demanding conditions. Whether you're pushing your Raptor to its limits off-road or cruising on the highway, this suspension system excels in both environments.

Key Features

  • Adjustable 1-3” front lift for increased ground clearance and better off-road performance
  • Vehicle-specific valving provides unmatched ride quality across on- and off-road conditions
  • Easy-to-adjust CDC Valve with 10 compression damping settings for versatile driving styles and terrain
  • ICON’s multi-stage hydraulic “Bump Zone” for improved bottom-out resistance during extreme compressions
  • 10" finned aluminum reservoirs offer generous oil volume and superior cooling for consistent performance
  • Heavy-duty CNC machined 1” shock shafts and FK Rod End COM12 spherical bearings for maximum strength and durability
  • Fully serviceable design allows for revalving, rebuilds, and extended service life
  • Bolt-on design for easy installation with no modification required

Benefits

  • Improved Performance: With increased wheel travel and vehicle-specific valving, the system enhances control and ride quality for both on-road and off-road conditions.
  • Enhanced Control: The CDC Valve with 10 settings offers precise tuning, allowing the suspension to adapt to different driving conditions and load setups.
  • Rugged Durability: The heavy-duty components, including 1” shock shafts and FK Rod End bearings, provide maximum strength, while the design protects against premature wear.
  • Heat Dissipation: The 10" finned aluminum reservoirs increase oil volume and cooling surface area, reducing the risk of shock fade during extended use.
  • Easy Installation: The kit’s bolt-in design ensures a straightforward installation process into the OEM shock location, with no cutting or modifications required.
  • Long-Lasting Components: ICON-engineered coil springs are guaranteed for life against sagging or breakage, ensuring reliable performance for years.

Product Specs

  • Size: 3.0 Series Coilover and 3-Tube Bypass Shocks
  • Lift Range: Adjustable 1-3” front lift
  • Material: 6061 CNC machined aluminum, CAD-plated shock bodies, 1” shock shafts
  • Shock Type: Coilover and 3-Tube Bypass with remote reservoirs
  • Reservoir Size: 10" (coilover) and 12" (bypass)
  • Shock Features: Adjustable compression damping, multi-stage hydraulic “Bump Zone,” and easy-to-adjust detented knobs
  • Spring Type: ICON-engineered coil springs
  • Compatibility: 2017-2020 Ford Raptor
  • Design: Fully serviceable and rebuildable for long-term maintenance

Install Difficulty Level

The ICON K93152 Stage 2 Suspension System is designed with an easy, bolt-on installation process. With no need for cutting or welding, installation can be completed in approximately 3-4 hours, making it ideal for DIY enthusiasts or professional installers looking for a straightforward upgrade.

Vehicle Fitment

  • Make: Ford
  • Model: Raptor
  • Year Range: 2017-2020
  • Engine: Compatible with all engine types

Note:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • TECH NOTE: 2019-2020 VEHICLES WITH FACTORY LIVE VALVE SHOCKS WILL NEED AN ICON DAMPER INTERFACE DEVICE (PN: 95199) TO ALLOW THE VEHICLE DRIVE MODES TO OPERATE CORRECTLY WITH THE OE SHOCKS REMOVED.

For any questions or to report product description inaccuracies, contact the MPT Performance experts at (407) 636-7077 or by email.
