17-20 Ford Raptor ICON K93153 1-3" Lift, 3.0, Stage 3 Suspension System

The ICON K93153 Stage 3 Suspension System for the 2017-2020 Ford Raptor delivers enhanced off-road performance with 1-3” adjustable lift, 3.0 Series coilovers, and 3-Tube bypass shocks. It provides superior ride quality, durability, and long-lasting performance, with easy installation and fully rebuildable components for ultimate control and comfort.

Top Features

  • Adjustable 1-3” front lift
  • 3.0 Series coilovers with 10” finned aluminum reservoirs
  • 3-Tube bypass shocks with 12” finned aluminum reservoirs
  • Multi-rate leaf springs with 3 adjustable spring rates
  • Easy-to-adjust CDC Valve with 10 compression damping settings
  • Billet aluminum upper control arms with patented Delta Joint technology

Vehicle Fitment

  • Make: Ford
  • Model: Raptor
  • Year Range: 2017-2020
  • Engine: Compatible with all engine types
Vendor: ICON
SKU: ICOK93153
Availability: (Special Order Item)
$ 10,734.80 USD
On-Sale $ 10,734.80 USD
Normally
Better hurry, only 0 left in stock.

Secure Shopping with Hassle Free Returns

Free Shipping on orders over $149

10 customers are viewing this product
  • More Power Tuning
  • More Power Tuning

Proposition65 Warning: Cancer and Reproductive Harm

17-20 Ford Raptor ICON K93153 1-3" Lift, 3.0, Stage 3 Suspension System

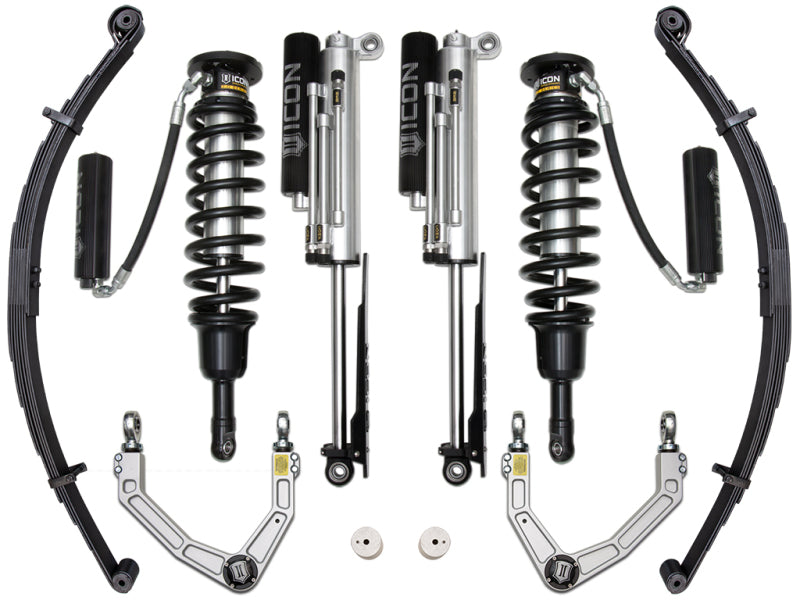

The ICON K93153 Stage 3 Suspension System is the ultimate performance upgrade for your 2017-2020 Ford Raptor. Featuring 3.0 Series coilovers, 3-Tube bypass shocks, and a multi-rate leaf spring kit, this system provides exceptional ride quality, durability, and off-road capability. Offering adjustable lift heights between 1-3” and superior wheel travel, the ICON system delivers a balanced and stable ride, whether on challenging off-road terrain or smooth highways. Enhanced features such as the adjustable Compression Damping Control (CDC) Valve, multi-stage "Bump Zone," and robust billet aluminum upper control arms ensure maximum control, comfort, and long-lasting performance.

Key Features

  • 1-3” Adjustable Front Lift: Provides superior ground clearance and better off-road performance.
  • 3.0 Series Coilovers with 10” Finned Aluminum Reservoirs for increased cooling and damping consistency.
  • Vehicle-Specific Valving ensures superior ride quality and control over various terrains.
  • Easy-to-adjust CDC Valve with 10 settings to fine-tune damping based on driving style and load.
  • Multi-stage Hydraulic “Bump Zone” for improved bottom-out resistance during extreme off-road use.
  • High-Quality, ICON-Engineered Coil Springs are guaranteed for life against sagging or breakage.
  • Billet Aluminum Upper Control Arm Kit featuring patented Delta Joint technology for maximum durability and quiet, noise-free operation.
  • 3-Tube Bypass Shocks with 12” Finned Aluminum Reservoirs provide superior damping and rebound control.
  • Multi-Rate Leaf Springs with 3 adjustable spring rates for customized ride comfort and performance.

Benefits

  • Enhanced Off-Road Performance: The system delivers improved travel, damping, and durability, allowing your Ford Raptor to excel in the toughest off-road environments.
  • Superior Ride Quality: Vehicle-specific valving and adjustable compression damping offer a smoother, more controlled ride, reducing body roll and increasing stability on all surfaces.
  • Durability and Strength: Built with high-quality components such as CNC-machined 1” shock shafts, FK Rod End bearings, and billet aluminum control arms, the system ensures long-lasting performance.
  • Easy Installation: The bolt-in design eliminates the need for modifications, making installation straightforward and hassle-free.
  • Fully Rebuildable: The system’s serviceable design allows for revalves and rebuilds, ensuring the suspension lasts for years.

Product Specs

  • Size: 3.0 Series Coilovers, 3-Tube Bypass Shocks, Multi-Rate Leaf Springs
  • Lift Range: Adjustable 1-3” front lift
  • Material: CNC-machined 6061 aluminum, billet aluminum upper control arms, hard anodized shock bodies
  • Shock Type: Coilovers with remote reservoirs and 3-Tube Bypass Shocks
  • Reservoir Size: 10” finned aluminum (coilovers), 12” finned aluminum (bypass)
  • Compression Damping Control: Easy-to-adjust CDC Valve with 10 settings
  • Spring Type: Multi-rate leaf springs with 3 adjustable rates
  • Compatibility: 2017-2020 Ford Raptor
  • Design: Fully serviceable and rebuildable for long-term maintenance

Install Difficulty Level

The ICON K93153 Stage 3 Suspension System features a bolt-on design for easy installation. With no cutting or welding required, installation can be completed in approximately 5-6 hours, making it a suitable upgrade for enthusiasts with basic mechanical experience.

Vehicle Fitment

  • Make: Ford
  • Model: Raptor
  • Year Range: 2017-2020
  • Engine: Compatible with all engine types

Note:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • TECH NOTE: 2019-2020 VEHICLES WITH FACTORY LIVE VALVE SHOCKS WILL NEED AN ICON DAMPER INTERFACE DEVICE (PN: 95199) TO ALLOW THE VEHICLE DRIVE MODES TO OPERATE CORRECTLY WITH THE OE SHOCKS REMOVED.
