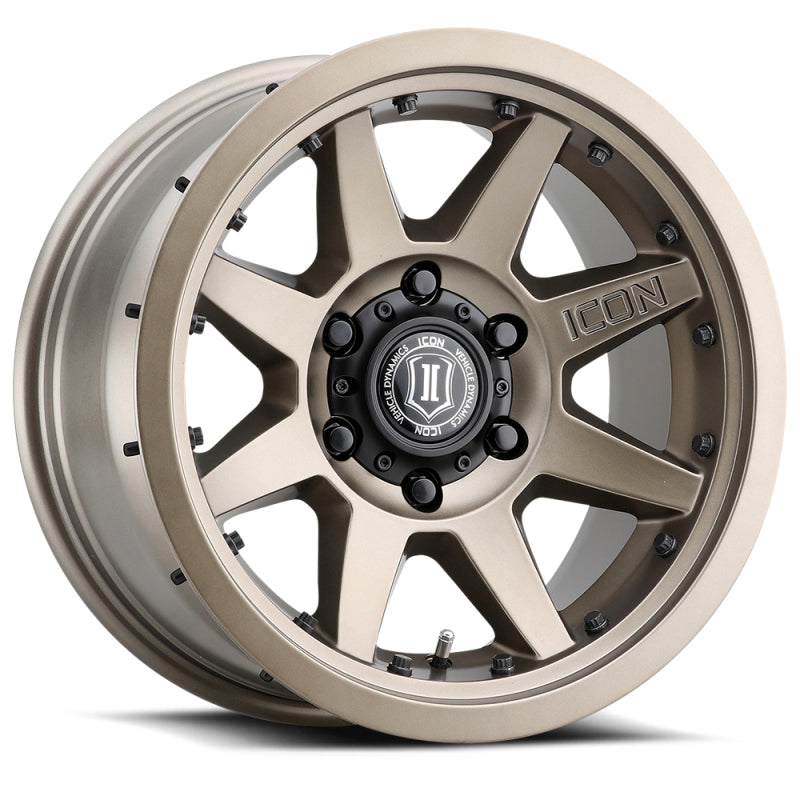

21-23 Ford Bronco / 19-23 Ford Ranger ICON 21817859057BR Rebound Pro 5.75in BS 17x8.5 6x5.5 25mm Offset 95.1mm Bore Bronze Wheel

ICON 21817859057BR 21-23 Ford Bronco / 19-23 Ford Ranger Rebound Pro 5.75in BS 17x8.5 6x5.5 25mm Offset 95.1mm Bore Bronze Wheel

If you are looking for a wheel that combines off-road performance and on-road compliance, look no further than the ICON 21817859057BR Rebound Pro wheel. This wheel features the patented InnerLock technology, which uses alloy pins to secure the tire bead to the wheel, preventing de-beading during extreme side loads or aggressive driving. The Rebound Pro wheel is also DOT compliant, meaning you can enjoy the benefits of lower tire pressure without compromising safety or legality. The Rebound Pro wheel is designed to optimize vehicle dynamics and tire clearance, as well as enhance the appearance of your Ford Bronco or Ranger with its bronze finish and machined accents.

Key Features

• Engineered for DOT compliance
• Patented InnerLock technology (U.S. Patent No. 11,090,976) provides the ultimate blend of on-road safety and off-road performance
• Bead retention system features alloy pins that are removable, reusable, and replaceable
• Hardened bead retention pins utilize SAE J1926 O-ring seals and are constructed from high strength alloy that is thermochemically treated for extreme corrosion resistance
• Quick, easy, and safe tire installation and removal
• Strategically placed hardware for maximum protection from trail damage
• Compatible with a wide variety of tires without the need for any shims or special tools
• Application-specific dimensions optimize vehicle dynamics and tire clearance

Benefits

• Improved ride quality and traction with lower tire pressure
• Reduced risk of de-beading the tire during extreme side loads or aggressive driving
• No need for frequent maintenance, specialty tools, or parts
• Lightweight and strong construction
• One of the strongest wheel options on the market with a 3,200lb load rating
• Fully DOT compliant for on-road use
• Enhanced appearance and style of your vehicle
• Lifetime warranty on all components, springs, and weldments
• One year finish warranty

Product Specs

• Size: 17x8.5
• Weight: 32 Pounds
• Bolt Pattern: 6x5.5
• Offset: 25mm
• Backspacing: 5.75"
• Bore: 95.1mm
• Color: Bronze with machined accents
• Material: One-piece cast aluminum

Install Difficulty Level

Installing the Rebound Pro wheel is easy and can be done in less than an hour. You just need a jack, jack stands, a lug wrench, and a torque wrench. Follow these simple steps:

• Raise your vehicle with a jack and support your vehicle with jack stands
• Remove your wheels and tires from your vehicle
• Test fit each wheel on your vehicle and make sure there is no interference with the brake calipers, suspension components, or fenders
• Mount your tires on the Rebound Pro wheels using a tire machine or a manual tire changer
• Insert the bead retention pins into the holes on the inner side of the wheel and tighten them with a hex wrench
• Install the Rebound Pro wheels and tires on your vehicle and torque the lug nuts to the manufacturer’s specifications
• Lower your vehicle and remove the jack and jack stands
• Check the tire pressure and adjust it to your preference
• Enjoy your new Rebound Pro wheels!

Vehicle Fitment

The Rebound Pro wheel fits the following vehicles:

• 2021-2023 Ford Bronco (all engines)
• 2019-2023 Ford Ranger (all engines)
