21-23 Ford F150 4WD ICON 91825C 3in Lift 2.5 VS RR CDCV Coilover Kit

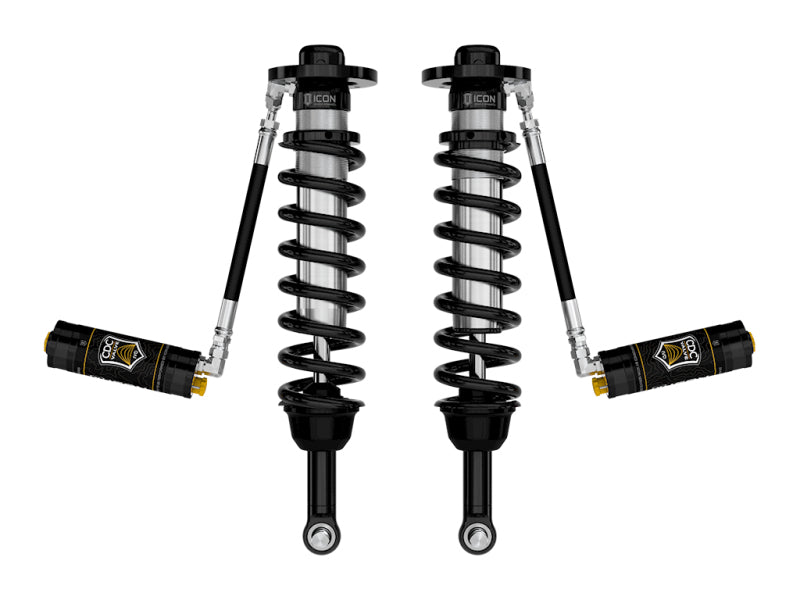

ICON 91825C 3in Lift 2.5 VS RR CDCV Coilover Kit

If you are looking for a high-performance suspension upgrade for your 2021-2023 Ford F-150 4WD truck, look no further than the ICON 91825C 3in Lift 2.5 VS RR CDCV Coilover Kit. This kit features ICON’s Vehicle-specific valving that provides a sport-tuned feel on and off-road, while allowing you to adjust the lift height from 2.75 to 3.5 inches over stock. The larger 2.5-inch shock body and increased piston area over stock components provide improved damping ability and outstanding ride characteristics across varying types of terrain. The remote reservoirs ensure optimum performance by keeping the shocks at a cooler operating temperature during extended off-road use. The ICON CDCV (Compression Damping Control Valve) system allows you to precisely dial in your suspension performance with 10 settings of external compression damping adjustment. Whether you are driving on the street, slow-crawling through the rocks, or mobbing across the desert at full throttle, the ICON 91825C coilover kit will give you the confidence and control you need.

Key Features

• Increased wheel travel and ride quality over stock
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping and control
• Adjustable for 2.75-3.5" of lift height over stock
• Remote reservoir to attain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8" shaft
• High strength alloy CNC machined lower bar pin
• 100% Bolt-on - no cutting or welding necessary for installation

Benefits

• Enhances the performance and appearance of your F-150 truck
• Allows the use of larger, more aggressive wheel and tire combinations
• Improves handling, stability, and comfort on any terrain
• Provides a customizable suspension setup to suit your driving style and preferences
• Reduces shock fade and extends shock life
• Backed by ICON’s limited lifetime warranty against manufacturer defects

Product Specs

• Part Number: 91825C
• Product Type: Coilover Shock Kit
• Product Series: V.S. Series 2.5
• Product Configuration: Remote Reservoir with CDCV
• Lift Height Range: 2.75-3.5 inches
• Shock Body Size: 2.5 inches
• Shock Body Material: Steel
• Shock Body Finish: CAD Plated
• Shock Shaft Size: 7/8 inches
• Shock Shaft Material: Chrome Plated Steel
• Spring Rate: 700 lbs/in
• Spring Material: Steel
• Spring Finish: Silver Powder Coat
• Reservoir Type: Remote
• Reservoir Size: 2.5 inches
• Reservoir Material: Aluminum
• Reservoir Finish: Black Anodized
• Mounting Hardware: Included
• Installation Instructions: Included

Install Difficulty Level

The ICON 91825C coilover kit is designed to be a 100% bolt-on installation, meaning no cutting or welding is required. The installation process is straightforward and can be done by anyone with basic mechanical skills and tools. The estimated install time is 2 hours, but may vary depending on your experience and vehicle condition. The kit comes with detailed installation instructions and all the necessary hardware. If you have any questions or need assistance, you can contact the MPT Performance experts at (407) 636-7077 or by email.

Vehicle Fitment

The ICON 91825C coilover kit is compatible with the following vehicles:

• 2021-2023 Ford F-150 4WD
• Not compatible with F-150 Tremor or F-150 Raptor or models equipped with Continuously Controlled Damping (CCD) system and models equipped with BlueCruise
• Requires ICON Delta Joint Pro front upper control arms. DO NOT install in conjunction with OE or other brand aftermarket UCAs.

If you have any questions about this product or to report product description inaccuracies, contact the MPT Performance experts at (407) 636-7077 or by email.
