21-23 Ford F150 4WD ICON 91825E 3in Lift 2.5 VS RR CDEV Coilover Kit

ICON 91825E 3in Lift 2.5 VS RR CDEV Coilover Kit

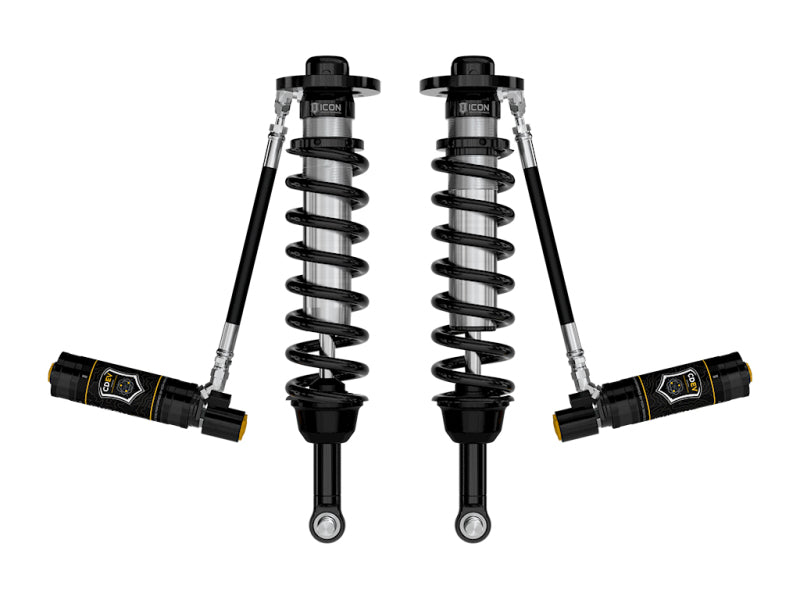

If you are looking for a high-performance suspension upgrade for your 2021-2023 Ford F-150 4WD truck, you should consider the ICON 91825E 3in Lift 2.5 VS RR CDEV Coilover Kit. This kit features a pair of ICON Vehicle Dynamics V.S. Series 2.5" coilover shocks with remote reservoirs and CDEV technology, which allow you to adjust the compression damping settings and the ride height of your truck from inside the vehicle. The CDEV system also uses a G-force sensor and a gyroscope to automatically adapt the shock settings to the terrain, giving you the best possible ride quality and handling on and off-road. The ICON 91825E coilover kit is designed to provide a sport-tuned feel, improved damping ability, increased wheel travel, and enhanced durability over the stock components. Whether you want to lift your truck for a more aggressive stance, fit larger tires, or tackle any terrain with confidence, the ICON 91825E coilover kit is the perfect choice for your F-150.

Key Features

• ICON’s CDE Valve technology allows for in-vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use
• Vehicle-specific valving provides a sport-tuned feel on and off-road
• Adjustable for 2.75-3.5" of lift height over stock
• ICON engineered coil springs
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8" shaft
• FK rod end bearings for extended longevity and minimal deflection

Benefits

• Enhances the ride quality and handling of your F-150
• Allows you to customize the suspension settings to your preference and driving conditions
• Increases the ground clearance and wheel travel of your truck
• Accommodates larger and more aggressive wheel and tire combinations
• Improves the durability and longevity of your suspension components
• Backed by ICON’s limited lifetime warranty against manufacturer defects

Product Specs

• Part Number: 91825E
• Product Type: Coilover Shock Kit
• Product Series: V.S. Series 2.5
• Product Subseries: RR CDEV
• Lift Height: 2.75-3.5"
• Shock Body Size: 2.5"
• Shock Body Material: Steel
• Shock Body Finish: CAD Plated
• Shock Shaft Size: 7/8"
• Shock Shaft Material: Chrome Plated Steel
• Reservoir Type: Remote
• Reservoir Size: 2.5"
• Reservoir Material: Aluminum
• Reservoir Finish: Anodized
• Spring Rate: 700 lbs/in
• Spring Material: Steel
• Spring Finish: Powder Coated
• Mounting Hardware: Included
• Installation Instructions: Included

Install Difficulty Level

The installation of the ICON 91825E coilover kit is relatively easy and can be done by anyone with basic mechanical skills and tools. The installation time is estimated to be around 2 hours. The kit comes with all the necessary hardware and instructions to install the coilovers on your F-150. You will need to remove the stock shocks and springs, and replace them with the ICON coilovers. You will also need to connect the remote reservoirs and the CDEV wiring harness to the coilovers and mount them securely on the vehicle. You will then need to adjust the ride height and the compression damping settings according to your preference and the instructions provided. The kit does not require any cutting or welding, and is 100% bolt-on.

Vehicle Fitment

The ICON 91825E coilover kit is compatible with the following vehicles:

• 2021-2023 Ford F-150 4WD
• Not compatible with F-150 Tremor or F-150 Raptor or models equipped with Continuously Controlled Damping (CCD) system and models equipped with BlueCruise
• Requires ICON Delta Joint Pro front upper control arms
