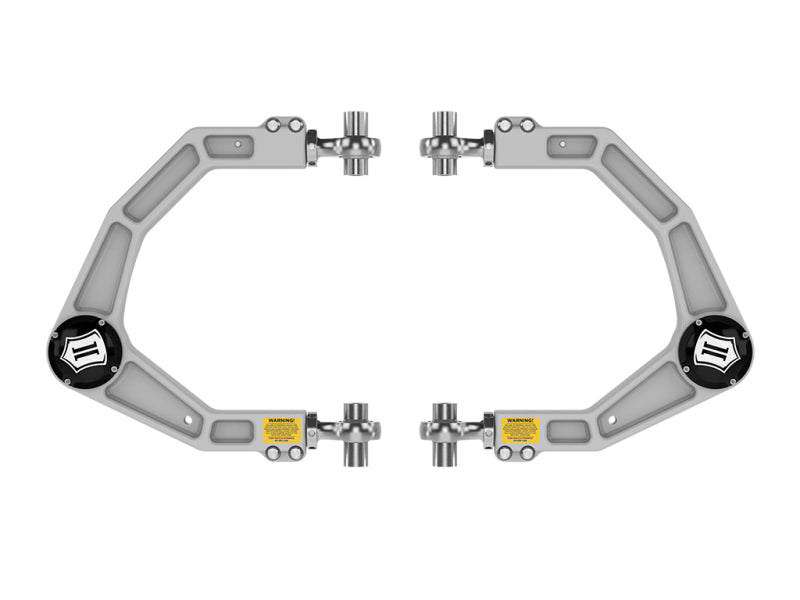

21-25 Ford F-150 Raptor Icon 98564DJ Billet Upper Control ARM w/ Delta Joint Pro Kit

Precision-engineered for the 2021–2025 Ford F-150 Raptor, the ICON Billet Upper Control Arm w/ Delta Joint PRO Kit corrects suspension geometry on lifted trucks while increasing strength, articulation, and adjustability. This upgrade delivers smoother handling, improved alignment, and durable performance for demanding street and off-road use.

Top Features

  • CNC-machined 6061 billet aluminum construction

  • Patented, fully rebuildable Delta Joint PRO for bind-free travel

  • On-vehicle adjustable camber and caster

  • Corrects geometry on 0–3″ front lift setups

  • High-strength FK rod ends for precise suspension control

Vehicle Fitment

  • 2021–2025 Ford F-150 Raptor

  • Compatible with 0″–3″ front suspension lift

  • Designed for OEM or aftermarket wheel and tire setups up to 35″ tires

Vendor: ICON
SKU: ICO98564DJ
Availability: Out Of Stock
$ 1,659.95 USD
On-Sale $ 1,659.95 USD
Normally
Better hurry, only 0 left in stock.
Questions? Ask an MPT Expert
Lowest Price Guarantee
Notify Me When Available
Add to wishlist

Secure Shopping with Hassle Free Returns

Free Shipping on orders over $149

10 customers are viewing this product
UPC: 00840103429359
  • More Power Tuning
  • More Power Tuning

Proposition65 Warning: Cancer and Reproductive Harm

Description

ICON Vehicle Dynamics Billet Upper Control Arm w/ Delta Joint PRO Kit (Part Number: 98564DJ)

This premium suspension upgrade is engineered specifically for the 2021-2025 Ford F-150 Raptor, delivering performance gains both on-road and off-road. Designed to correct front suspension geometry and improve wheel alignment when lifted up to 3″, this kit replaces the restrictive OEM upper control arms with precision-machined components that enhance articulation, durability, and adjustability. Constructed from CNC-machined 6061 billet aluminum with high-strength FK rod ends and ICON’s patented Delta Joint PRO, it allows full bump and droop travel while eliminating suspension bind — a key advantage for serious off-roaders and performance enthusiasts alike.

This ICON billet upper control arm kit dramatically enhances suspension performance for Gen3 Ford Raptors by correcting key geometry issues, providing on-vehicle camber/caster adjustability, and improving clearance for lifted setups. The Delta Joint PRO replaces the OE ball joint and delivers comprehensive articulation through the full suspension travel without binding. Every critical component and mounting hardware required for installation is included — making this a complete, bolt-on upgrade that elevates vehicle handling, longevity, and capability.

Key Features

  • CNC-machined 6061 billet aluminum arms with a satin anodized finish for strength and corrosion resistance.

  • Suspension geometry correction for proper wheel alignment with up to 3″ of front lift.

  • On-vehicle double adjuster sleeves for precise camber and caster tuning.

  • Patented Delta Joint PRO (U.S. Pat. 10,731,700) designed for maximum articulation and bind-free travel.

  • Delta Joint PRO is entirely serviceable and rebuildable for long-term durability.

  • Heavy-duty FK Rod Ends at chassis pivots provide smooth, precise movement.

  • Built-in O-ring sealed dust cover caps to protect critical components.

  • Complete kit includes all hardware required for installation.

Benefits

  • Enhances suspension articulation and travel for improved off-road performance.

  • Corrects caster and camber for optimized tire wear and handling stability.

  • Durable, lightweight construction improves strength without excessive weight.

  • Rebuildable Delta Joint PRO extends service life and reduces long-term maintenance cost.

  • Restores alignment control lost with lifted suspensions, improving road manners and safety.

  • Backed by ICON Vehicle Dynamics warranty coverage for confidence in performance.

  • Ideal for trucks that see mixed street and trail use, offering a balance of strength and adjustability.

Product Specifications

  • Size: Front upper control arm kit.

  • Color/Finish: Satin anodized.

  • Material: CNC-machined 6061 billet aluminum with FK Rod Ends.

  • Patented Feature: Delta Joint PRO (U.S. Pat. 10,731,700).

  • Vehicle Fitment: Designed for 2021-2025 Ford F-150 Raptor.

  • Lift Compatibility: Works with 0-3″ front lift setups.

  • Shipping Dimensions: Approx. 16″ W x 15″ L x 6″ D.

  • Shipping Weight: ~9.02 lbs.

  • Includes: Billet arms, hardware, and adjusters.

Install Difficulty Level

This kit is designed for a bolt-on installation using factory mounting points and common hand tools. With basic mechanical skills and standard garage equipment, most installations can be completed in approximately 2 hours — making it approachable for experienced DIYers while still feasible for professional shops. A post-installation alignment is recommended to maximize handling performance.

Vehicle Fitment

Fits the following vehicles:
2021-2025 Ford F-150 Raptor with front suspension lift from 0″ to 3″.

Technical Notes

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.5" with 5" Backspace/6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18" x 9" with 5.25" Backspace/6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20" x 9" with 5.625" Backspace/16mm Offset
  • Recommended Aftermarket Tires: 35X12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
