21-26 Ford Bronco KC HiLiTES AK-97172 Gravity® Titan® Ditch Light Kit

21-26 Ford Bronco KC HiLiTES AK-97172 Gravity® Titan® Ditch Light Kit

The KC HiLiTES AK-97172 Gravity® Titan® Ditch Light Kit provides a complete forward-facing lighting solution engineered specifically for the 2021-2026 Ford Bronco. Designed for A-pillar and ditch mounting, the system delivers powerful off-axis illumination to help improve visibility along trail edges, around obstacles, and across the terrain immediately surrounding the vehicle. Gravity® Titan® LED lights combine Titan Core technology with 3-Source LED optics and a Wide Beam pattern optimized for short- to mid-range illumination, making the kit well suited for ditch lighting, cornering, and peripheral off-road visibility. Dual Power Modes provide a high-power white-light setting for maximum illumination and an integrated amber dust light for dusty, snowy, or other low-visibility conditions. Vehicle-specific heavy-duty steel mounting brackets feature a black powder-coated finish and bolt directly to factory mounting locations without drilling or modification, providing a clean, secure, factory-style installation. For Bronco owners seeking a premium off-road lighting upgrade with high output, broad coverage, durable construction, and vehicle-specific fitment, the Gravity® Titan® Ditch Light Kit is a complete ready-to-install solution.

Key Features

• Gravity® Titan® LED lights with Titan Core technology and 3-Source LED optics.
• Wide Beam pattern optimized for short- to mid-range illumination.
• Dual Power Modes with High Power Mode and integrated Amber LED Dust Light.
• Amber Dust Light provides a highly visible marker for dusty, snowy, and low-visibility conditions.
• High Power Mode provides powerful wide-beam illumination for ditch and peripheral lighting.
• Patented Pass-Through Front Cooling provides thermal management.
• Gravity Reflective Diode Technology provides precise beam control and efficient light output.
• MoistureBlock® Technology uses an integrated weather-sealed plug to help protect against water intrusion.
• Vehicle-specific Ford Bronco ditch light brackets provide a clean, factory-style installation.
• Heavy-duty steel mounting brackets feature a black powder-coated finish.
• Bolt-on mounting uses factory mounting locations without drilling or vehicle modification.

Benefits

• Improves off-axis visibility along the trail edge and around obstacles and nearby terrain.
• Provides broad peripheral lighting for enhanced off-road awareness.
• Wide Beam illumination is suited to ditch, cornering, and close-range trail lighting.
• Dual lighting modes allow the driver to select high-output white illumination or amber dust lighting according to conditions.
• Vehicle-specific brackets simplify installation while maintaining a clean factory-style appearance.
• IP68-rated construction provides protection against dust and water intrusion.
• Includes the lights, covers, wiring kit, switch, removal tool, and vehicle-specific mounting brackets for a complete lighting upgrade.
• KC HiLiTES provides an Adventure Further Lifetime Guarantee covering KC products under normal use, with repair or replacement support for qualifying failures or damage.

Product Specifications

• SKU: AK-97172
• UPC: 084709200107
• Condition: New
• Light Technology: LED
• Mount Location: A-Pillar / Ditch
• Beam Pattern: Combo
• Beam Distance: 1,010 m
• Product Dimensions: W: 51.58 in. x H: 6.05 in. x D: 3.27 in.
• Product Weight: 10.4 lb
• Color: Black
• LED Color: Amber / White
• Lens Color: Clear
• Light Temperature: 5000 K
• Candela Per Light: 144,250 cd (Spot) / 77,500 cd (Wide 40)
• Total Candela: 1,020,500 cd
• Wattage Per Light: 11.2W (Amber) / 39.48W (White)
• Total Wattage: 89.6W (Amber) / 315.84W (White)
• Amp Draw Per Light: 0.93 A (Amber) / 3.29 A (White)
• Total Amp Draw: 7.47 A (Amber) / 26.32 A (White)
• Voltage: 9V-36V
• Lumens Per Light: 2,972 lm
• Total Lumens: 23,776 lm
• Lux Per Light: 1,443 lx (Spot) / 775 lx (Wide 40)
• Total Lux: 10,205 lx
• IP Rating: IP68
• Package Options: Includes covers, mounts/brackets, wiring, and switch

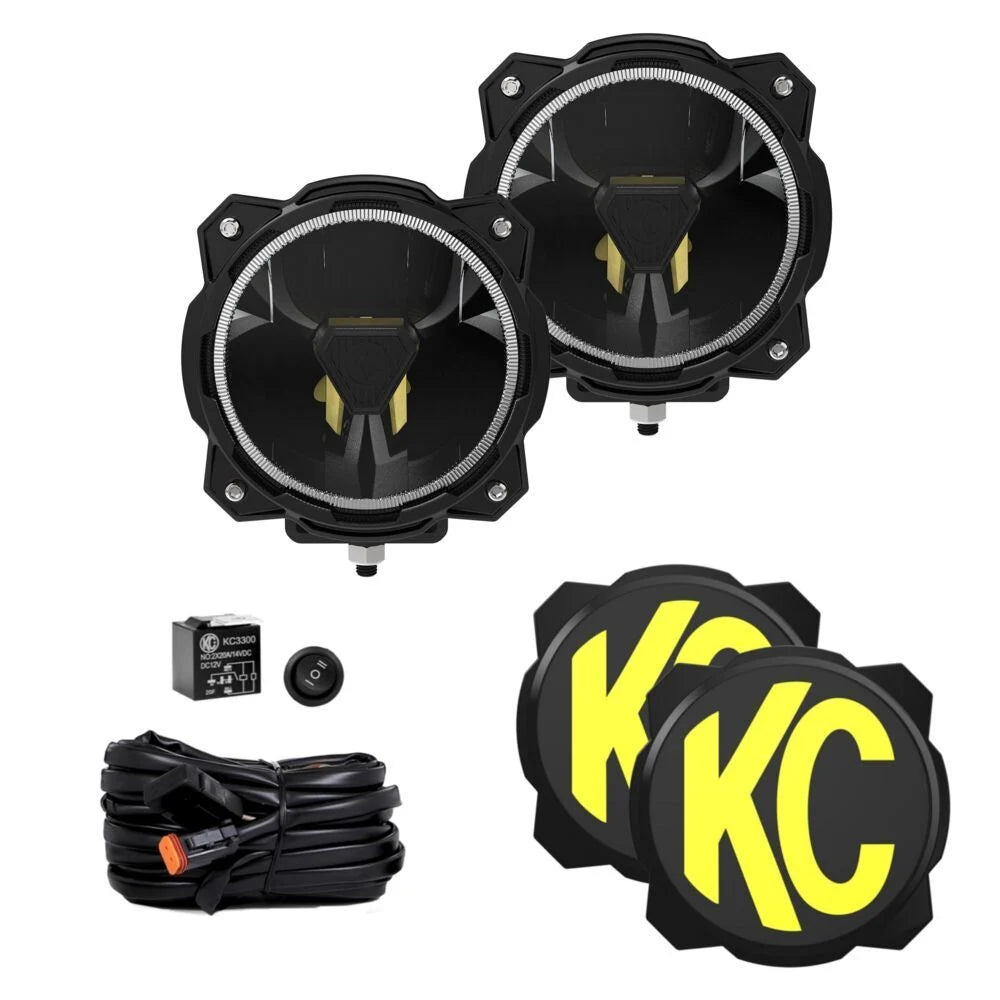

What’s Included

• (1) Pair of Gravity® Titan® LED Lights - Wide Beam, SKU 91403
• (2) Gravity 6-inch Light Covers - Black with Yellow KC Logo
• (1) Complete Wiring Kit with Switch
• (1) Cover Removal Tool
• (1) Pair of Ford Bronco Ditch Light Mounting Brackets, SKU 7333

Install Difficulty Level

Easy. The kit uses vehicle-specific brackets and bolt-on installation through factory mounting locations, eliminating the need for drilling or modification. The comparable KC HiLiTES Bronco ditch-light mounting application is listed at approximately 1 hour with a simple installation difficulty, making this a straightforward upgrade for a properly equipped installer.

Vehicle Fitment

Year: 2021-2026
Make: Ford
Model: Bronco
Mounting Location: Ditch / A-Pillar
Installation: Bolt-on installation using factory mounting locations.

For questions about this product or to report product description inaccuracies, contact the MPT Performance experts at (407) 636-7077 or by email.
