21-26 Ford Bronco KC HiLiTES AK-91425 Gravity Titan Overhead Light Bar

KC HiLiTES Gravity Titan Overhead Light Bar System for 2021-2026 Ford Bronco

Part Number: AK-91425

The KC HiLiTES Gravity® Titan® Overhead Light Bar System is a premium off-road lighting upgrade engineered specifically for the 2021-2026 Ford Bronco. Designed for serious trail performance and aggressive styling, this complete overhead lighting solution delivers exceptional long-range visibility while maintaining a clean, factory-inspired fit above the windshield. Built around KC’s advanced Gravity® Titan® LED platform, this system produces an enormous illumination footprint with impressive beam distance, making it ideal for overlanding, night wheeling, desert driving, and low-visibility trail conditions.

At the core of the system is KC’s revolutionary Titan Core technology combined with patented 3-Source LED optics, creating a brighter, wider, and more focused beam pattern than previous Gravity® lighting systems. Dual Power Modes provide the flexibility to switch between intense white forward lighting and an integrated amber dust light for enhanced visibility in snow, rain, fog, and dusty environments. The included Bronco-specific steel mounting brackets install directly to factory mounting locations for a secure, rugged fit compatible with both factory hardtops and soft tops.

This complete kit includes the 50-inch Gravity® Titan® 8-Light Combo Beam LED light bar, black KC logo covers, plug-and-play wiring harness with a 3-position switch, and all required mounting hardware for a streamlined installation. With over 23,000 lumens of output and an IP68 waterproof rating, this premium KC lighting system is built to dominate extreme off-road environments while enhancing the Bronco’s aggressive appearance.

Key Features

• Complete overhead LED light bar kit designed specifically for the 2021-2026 Ford Bronco
• Includes KC Gravity® Titan® 50-inch 8-Light Combo Beam LED Light Bar
• Titan Core technology increases peak intensity and beam distance
• Advanced 3-Source LED optics deliver superior mid-range and long-range illumination
• Dual Power Modes with white driving beam and integrated amber dust light
• Patented Infinity Ring® system allows expandable and curvable configurations
• Gravity Reflective Diode Technology for enhanced beam precision and efficiency
• MoistureBlock® weather-sealed plug system protects against water intrusion
• Heavy-duty steel Bronco-specific overhead mounting brackets
• Durable black powder-coated finish for corrosion resistance
• Plug-and-play wiring harness with included 3-position switch
• Bolt-on installation utilizing factory mounting locations
• Compatible with factory hardtop and soft top Broncos
• IP68-rated weather and dust resistance
• Includes black light covers with yellow KC logos

Benefits

• Dramatically improves nighttime off-road visibility and trail awareness
• Provides long-distance beam projection for high-speed off-road driving
• Amber dust lighting improves visibility during fog, snow, rain, and dusty conditions
• Vehicle-specific mounting ensures a clean, factory-quality appearance
• Rugged construction withstands demanding off-road environments
• Enhanced thermal management supports long-lasting LED performance
• Plug-and-play wiring simplifies installation and reduces setup time
• Adds aggressive off-road styling to the Ford Bronco
• Built for overlanding, rock crawling, desert racing, and adventure travel
• Backed by KC HiLiTES Adventure Further® lifetime warranty protection for long-term confidence

Product Specs

• Part Number: AK-91425
• Vehicle Application: 2021-2026 Ford Bronco
• Mount Location: Overhead / Windshield
• Light Bar Size: 50-inch
• Beam Pattern: Combo Beam
• Light Technology: LED
• LED Color: Amber / White
• Lens Color: Clear
• Housing Color: Black
• Bracket Material: Heavy-duty steel
• Bracket Finish: Black powder coat
• Color Temperature: 5000K
• Total Lumens: 23,776 lumens
• Lumens Per Light: 2,972 lumens
• Total Candela: 1,020,500 cd
• Beam Distance: 1,010 meters
• Total Lux: 10,205 lx
• Voltage Range: 9V-36V
• Total Wattage: 315.84W (White) / 89.6W (Amber)
• Total Amp Draw: 26.32A (White) / 7.47A (Amber)
• IP Rating: IP68
• Weight: 37.5 lbs
• Included Components:

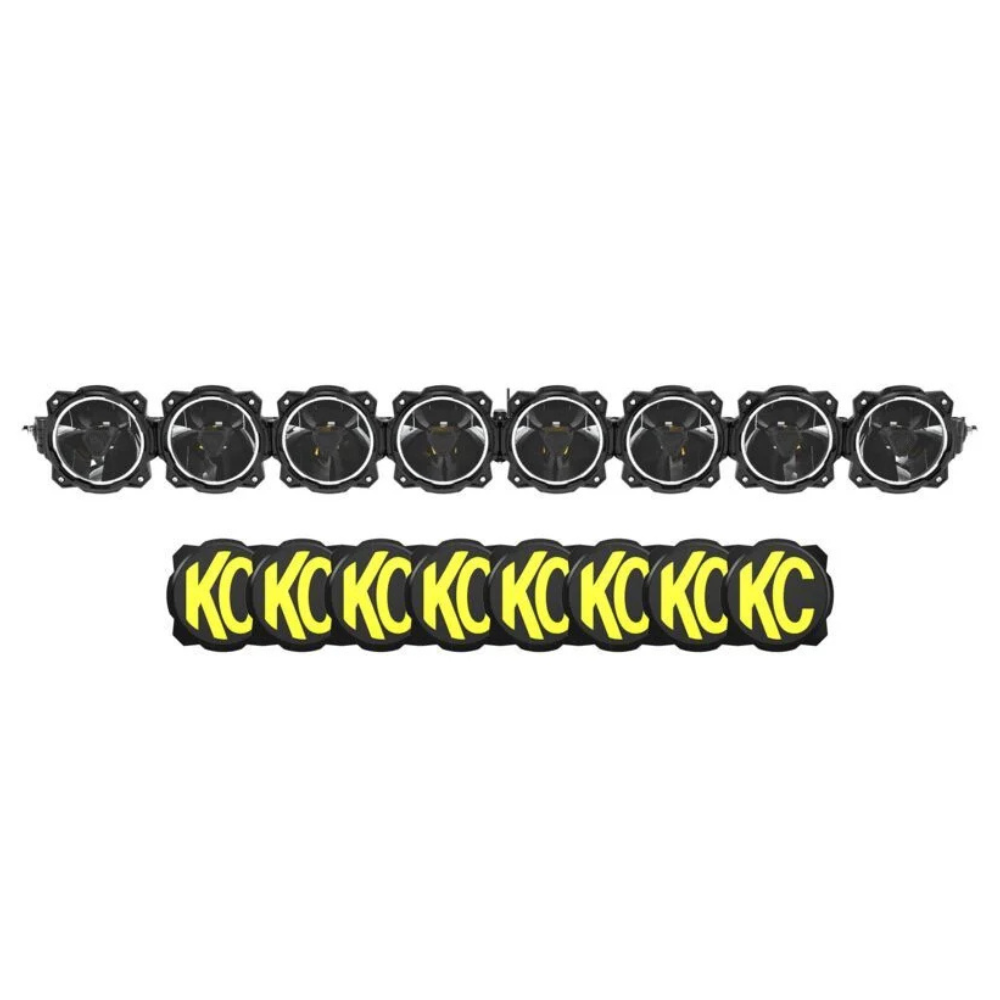

  • (1) Gravity® Titan® 50-inch LED Light Bar – 8-Light Combo Beam
  • (8) Gravity 6-inch Black Light Covers with Yellow KC Logo
  • (1) Plug-and-Play Wiring Harness
  • (1) 3-Position Switch
  • (2) Bronco Overhead Mounting Brackets
  • Installation Hardware
  • Cover Removal Tool

Install Difficulty Level

Installation is straightforward and beginner-friendly thanks to the Bronco-specific bolt-on bracket design and included plug-and-play wiring harness. The system mounts directly to factory accessory mounting locations without major modifications, drilling, or fabrication. Most installations can typically be completed in approximately 1-2 hours using basic hand tools. The included hardware and vehicle-specific design help make the process simple and clean for most Bronco owners.

Vehicle Fitment

• 2021-2026 Ford Bronco 2.3L EcoBoost
• 2021-2026 Ford Bronco 2.7L EcoBoost
