09-14 Ford F-150 2WD Maxtrac 903120F 2in Lift Blocks & U-Bolts w/ Rear FOX Shocks

09-14 Ford F-150 2WD Maxtrac 903120F 2in Lift Blocks & U-Bolts w/ Rear FOX Shocks

Are you looking for a way to lift the rear of your 2WD Ford F-150 without sacrificing its ride quality or performance? If so, you should consider the Maxtrac 903120F 2in Lift Blocks & U-Bolts w/ Rear FOX Shocks. This kit is designed to fit 2009-2014 Ford F-150 2WD models without factory blocks, and it provides a 2-inch rear lift with minimal effort and cost. The kit includes high-strength lift blocks, u-bolts, and FOX shocks that are custom-tuned for your truck. The lift blocks are made of cast iron for durability and stability, and the u-bolts are zinc coated for corrosion resistance. The FOX shocks are monotube, aluminum, and have external reservoirs for superior performance and comfort. With this kit, you can improve the appearance, towing, and hauling capacity of your truck, while maintaining its factory ride quality and performance.

Key Features

• 2-inch rear lift kit for 2WD Ford F-150 without factory blocks

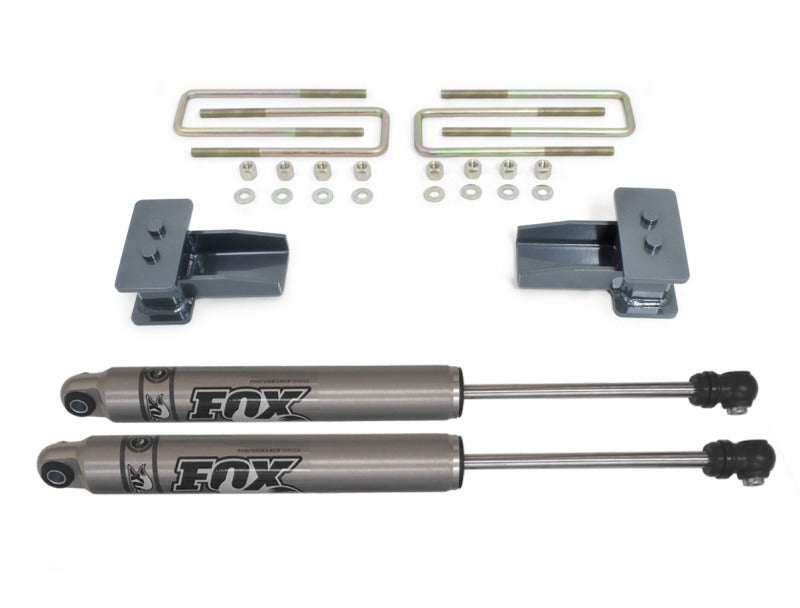

• Includes lift blocks, u-bolts, and FOX shocks
• Lift blocks are made of cast iron for durability and stability
• U-bolts are zinc coated for corrosion resistance
• FOX shocks are monotube, aluminum, and have external reservoirs
• Made in the USA

Benefits

• Easy and affordable way to lift the rear end of your truck
• Enhances the appearance and stance of your truck
• Increases the towing and hauling capacity of your truck
• Maintains the factory ride quality and performance of your truck
• Comes with a limited lifetime warranty on hard parts and a 1-year warranty on shocks

Product Specs

• Rear lift height: 2 inches
• Rear lift method: lift blocks and u-bolts
• Rear shocks: FOX 2.0 Performance Series
• Rear shock length: 24.5 inches extended, 15.5 inches collapsed
• Rear shock travel: 9 inches
• Rear shock body diameter: 2 inches
• Rear shock reservoir diameter: 2.5 inches
• Rear shock valving: 50/70
• Rear shock mount: eyelet/eyelet
• Rear shock color: silver
• Lift block material: cast iron
• Lift block size: 2 inches
• U-bolt material: steel
• U-bolt size: 9/16 x 3.5 x 12.5 inches
• U-bolt finish: zinc coated

Install Difficulty Level

Installing the Maxtrac 903120F 2in Lift Blocks & U-Bolts w/ Rear FOX Shocks is a simple and straightforward process that can be done in less than an hour. You will need some basic tools, such as a jack, jack stands, wrenches, sockets, and a torque wrench. The installation steps are as follows:

• Raise the rear of the truck and support it with jack stands
• Remove the rear wheels and tires
• Support the rear axle with a jack
• Remove the stock shocks and u-bolts
• Lower the axle and insert the lift blocks between the axle and the leaf springs
• Align the lift blocks with the center pins and the spring perches
• Raise the axle and install the new u-bolts and nuts
• Tighten the u-bolts to the specified torque
• Install the FOX shocks and tighten the bolts
• Reinstall the wheels and tires and lower the truck
• Check the alignment and the suspension components for proper fitment and clearance
• Re-torque the u-bolts after 500 miles of driving

Vehicle Fitment

The Maxtrac 903120F 2in Lift Blocks & U-Bolts w/ Rear FOX Shocks is designed to fit the following vehicles:

• 2009-2014 Ford F-150 2WD without factory blocks
• Engine: 3.5L V6 EcoBoost, 3.7L V6, 4.6L V8, 5.0L V8, 5.4L V8, 6.2L V8

If you have any questions about this product or want to report any inaccuracies in this product description, please contact the MPT Performance experts at (407) 636-7077 or by email.
