09-14 Ford F-150 2WD Maxtrac 903141 4in Lift Kit w/ Rear MaxTrac Shocks

09-14 Ford F-150 2WD Maxtrac 903141 4in Lift Kit w/ Rear MaxTrac Shocks

Do you want to give your 2WD Ford F-150 a more aggressive and off-road ready look? If so, you should check out the Maxtrac 903141 4in Lift Kit w/ Rear MaxTrac Shocks. This kit is designed to fit 2009-2014 Ford F-150 2WD models without factory blocks, and it provides a 4-inch lift for both the front and the rear of your truck. The kit includes front strut spacers, rear lift blocks, u-bolts, and MaxTrac shocks that are custom-tuned for your truck. The front strut spacers are made of billet aluminum for strength and durability, and they install easily on top of your stock struts. The rear lift blocks are made of cast iron for stability and reliability, and they come with zinc coated u-bolts for corrosion resistance. The MaxTrac shocks are twin-tube, gas-charged, and have a 10-stage velocity sensitive valving for optimal performance and comfort. With this kit, you can transform the appearance and performance of your truck, while maintaining its factory ride quality and handling.

Key Features

• 4-inch lift kit for 2WD Ford F-150 without factory blocks

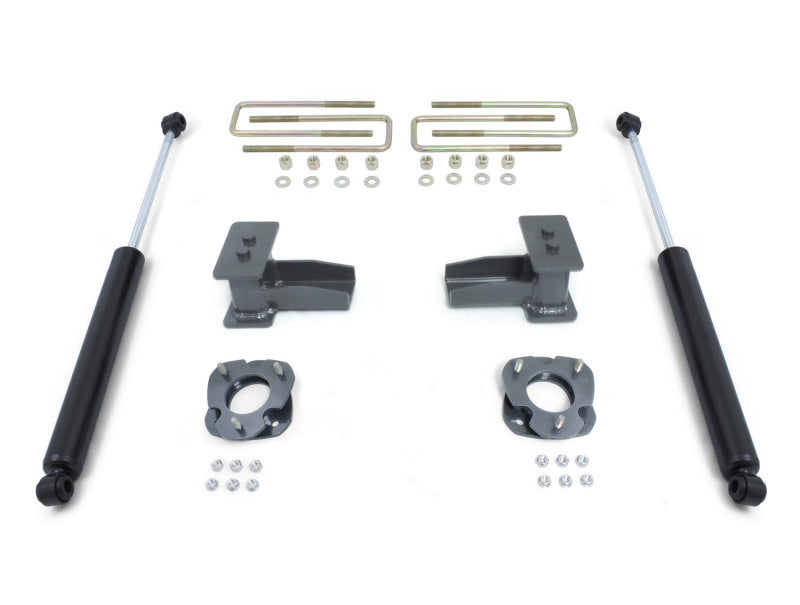

• Includes front strut spacers, rear lift blocks, u-bolts, and MaxTrac shocks
• Front strut spacers are made of billet aluminum for strength and durability
• Rear lift blocks are made of cast iron for stability and reliability
• U-bolts are zinc coated for corrosion resistance
• MaxTrac shocks are twin-tube, gas-charged, and have a 10-stage velocity sensitive valving
• Made in the USA

Benefits

• Transforms the appearance and performance of your truck
• Gives your truck a more aggressive and off-road ready look
• Allows you to fit larger tires and wheels
• Enhances your truck’s ground clearance and off-road capability
• Maintains your truck’s factory ride quality and handling
• Comes with a limited lifetime warranty on hard parts and a 1-year warranty on shocks

Product Specs

• Front lift height: 4 inches
• Front lift method: strut spacers
• Front strut spacer material: billet aluminum
• Front strut spacer size: 2.5 inches
• Rear lift height: 4 inches
• Rear lift method: lift blocks and u-bolts
• Rear lift block material: cast iron
• Rear lift block size: 4 inches
• U-bolt material: steel
• U-bolt size: 9/16 x 3.5 x 12.5 inches
• U-bolt finish: zinc coated
• Rear shocks: MaxTrac twin-tube gas shocks
• Rear shock length: 24.5 inches extended, 15.5 inches collapsed
• Rear shock travel: 9 inches
• Rear shock body diameter: 2.36 inches
• Rear shock mount: eyelet/eyelet
• Rear shock color: white

Install Difficulty Level

Installing the Maxtrac 903141 4in Lift Kit w/ Rear MaxTrac Shocks is a simple and straightforward process that can be done in less than 2 hours. You will need some basic tools, such as a jack, jack stands, wrenches, sockets, and a torque wrench. The installation steps are as follows:

• Raise the front of the truck and support it with jack stands
• Remove the front wheels and tires
• Loosen the upper strut nuts and bolts
• Remove the lower strut bolts and nuts
• Remove the stock struts from the truck
• Install the strut spacers on top of the stock struts
• Reinstall the struts with the spacers in the truck
• Tighten the upper and lower strut nuts and bolts
• Reinstall the wheels and tires and lower the truck
• Raise the rear of the truck and support it with jack stands
• Remove the rear wheels and tires
• Support the rear axle with a jack
• Remove the stock shocks and u-bolts
• Lower the axle and insert the lift blocks between the axle and the leaf springs
• Align the lift blocks with the center pins and the spring perches
• Raise the axle and install the new u-bolts and nuts
• Tighten the u-bolts to the specified torque
• Install the MaxTrac shocks and tighten the bolts
• Reinstall the wheels and tires and lower the truck
• Check the alignment and the suspension components for proper fitment and clearance
• Re-torque the u-bolts after 500 miles of driving

Vehicle Fitment

The Maxtrac 903141 4in Lift Kit w/ Rear MaxTrac Shocks is designed to fit the following vehicles:

• 2009-2014 Ford F-150 2WD without factory blocks
• Engine: 3.5L V6 EcoBoost, 3.7L V6, 4.6L V8, 5.0L V8, 5.4L V8, 6.2L V8

If you have any questions about this product or want to report any inaccuracies in this product description, please contact the MPT Performance experts at (407) 636-7077 or by email.
