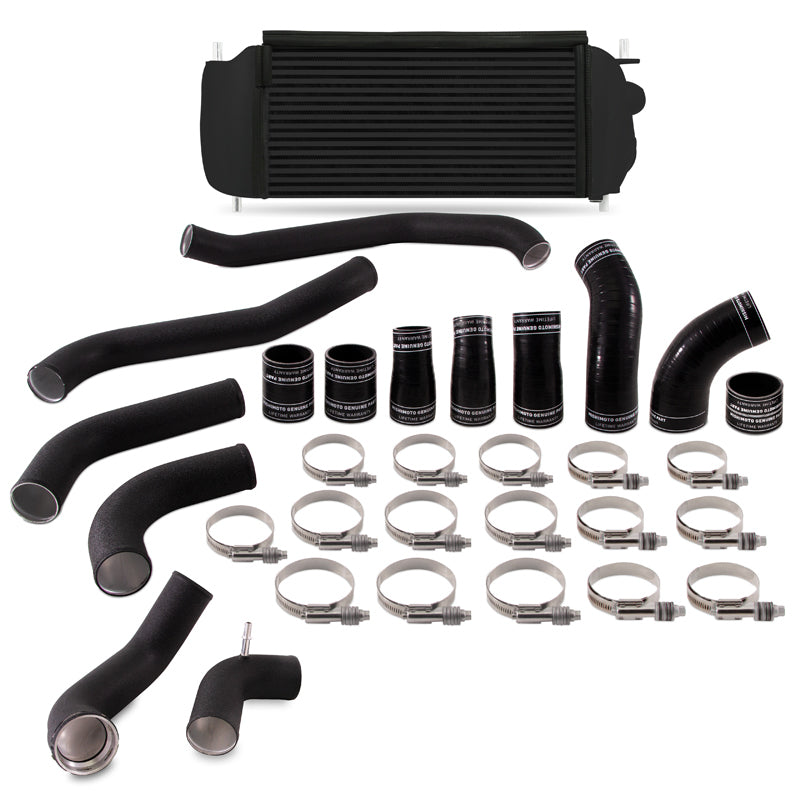

17-21 Ford F-150 3.5L V6 EcoBoost Mishimoto MMINT-F35T-17KBBK Performance Intercooler Kit - Black Cooler Black Pipes

Mishimoto MMINT-F35T-17KBBK 17-21 Ford F-150 3.5L V6 EcoBoost Mishimoto MMINT-F35T-17KBBK Performance Intercooler Kit - Black Cooler Black Pipes

If you are looking for a way to boost the performance and efficiency of your 2017-2021 Ford F-150 3.5L EcoBoost, you should consider upgrading your intercooler and piping system with the Mishimoto MMINT-F35T-17KBBK Performance Intercooler Kit. This kit is designed to replace the stock plastic piping and intercooler with high-quality aluminum components that offer better durability, airflow, and cooling. The Mishimoto intercooler kit will help you reduce intake air temperatures, increase horsepower and torque, and improve throttle response. Plus, it will give your F-150 a sleek and aggressive look under the hood with its black finish and black piping.

Key Features

• Direct fit for 2017-2021 Ford F-150 3.5L EcoBoost
• Increased intercooler pipe volume allows for better flow and power potential
• Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
• Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
• Includes Mishimoto Silicone Boots with DuraCore™ technology for superior resistance to heat, pressure, fuel, and oil
• Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
• 10°F (5.5°C) reduction in intake air temp
• 77% increase in intercooler internal core volume
• 163% increase in external fin surface area
• All-aluminum, TIG-welded construction
• Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
• Mishimoto Lifetime Warranty

Benefits

• Improves the performance and efficiency of your 3.5L EcoBoost engine by lowering intake air temperatures and increasing airflow
• Enhances the reliability and durability of your intercooler and piping system by replacing the weak and brittle plastic components with strong and resilient aluminum ones
• Allows for easy installation and customization with the CNC quick-disconnect and the additional port on the cold-side pipe
• Protects your pipes and boots from heat, pressure, fuel, and oil damage with the Mishimoto Silicone Boots with DuraCore™ technology and the constant-tension worm gear clamps
• Gives your F-150 a stylish and stealthy appearance with the black intercooler and black piping

Product Specs

• Intercooler Core Size: 21.06" x 5.75" x 5.28"
• Intercooler Core Volume: 593.4 in³
• Intercooler Core Construction: Bar-and-plate
• Intercooler Core Material: Aluminum
• Intercooler End Tank Material: Cast aluminum
• Intercooler Finish: Black
• Intercooler Inlet/Outlet: 2.5"
• Intercooler Max Rec. PSI: 40 psi
• Intercooler Weight: 19.85 lbs
• Pipe Diameter: 2.5"
• Pipe Material: Aluminum
• Pipe Finish: Wrinkle black powder-coated
• Pipe Weight: 8.8 lbs
• Boot Material: Silicone with DuraCore™ technology
• Clamp Material: Stainless steel
• Clamp Torque Spec: 4 N-m (35 in-lbs)

Install Difficulty Level

The installation of this intercooler kit is rated as hard and requires basic hand tools and some mechanical skills. The estimated install time is about 6-7 hours. You may need to remove some parts of the front bumper and grille to access the intercooler. You may also need to drill and tap the additional port on the cold-side pipe if you want to use it for methanol injection or sensors. The kit comes with detailed instructions and all the necessary hardware for installation.

Vehicle Fitment

This intercooler kit is designed for the 2017-2021 Ford F-150 3.5L EcoBoost. It fits with the stock intercooler fans without modification. It does not fit with the 2.7L EcoBoost or the 5.0L V8 engines.
