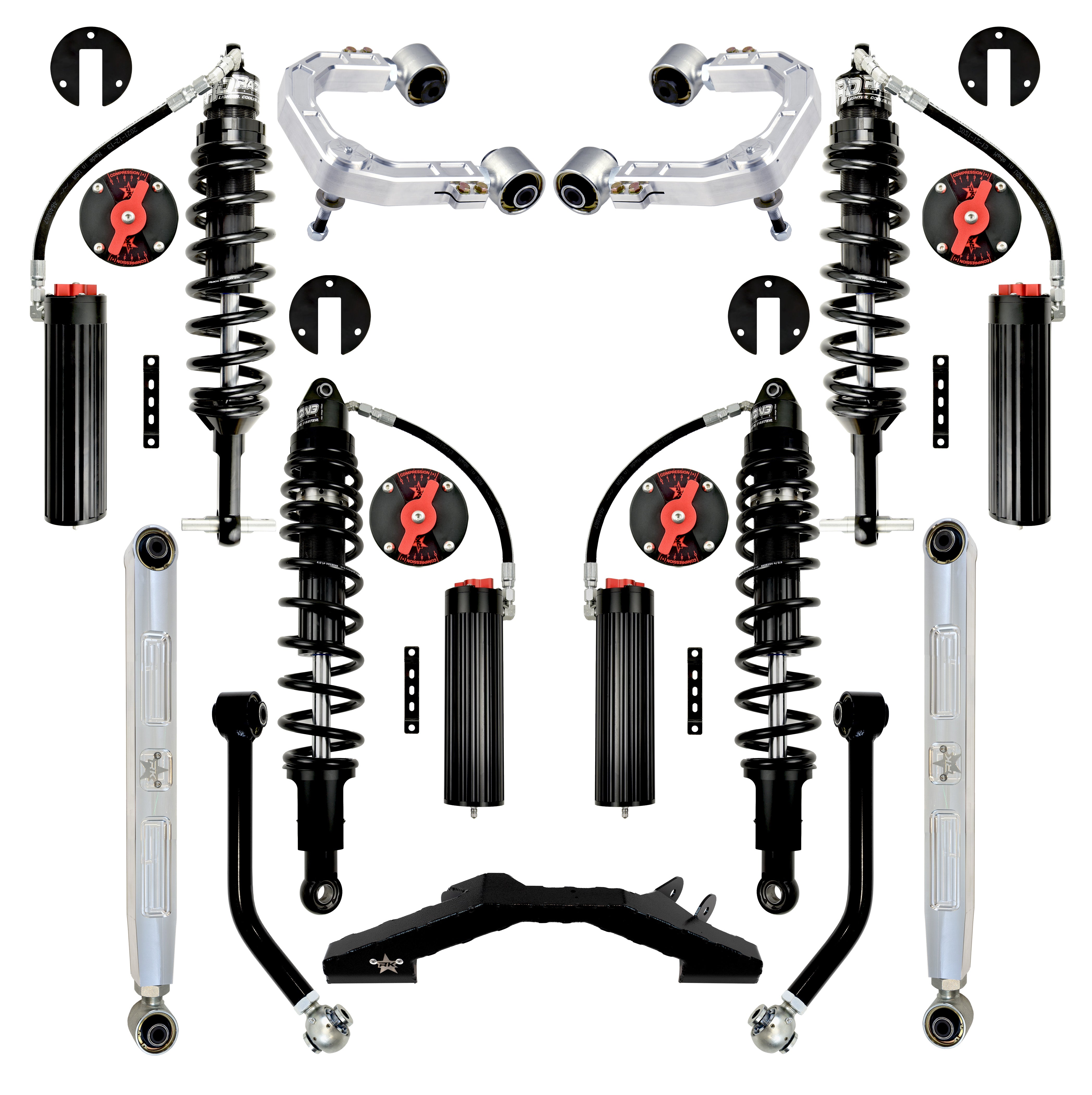

21+ Ford Bronco Rock Krawler FB30PXE-S2 3" Pro-X Elite System Stage 2

21+ Ford Bronco Rock Krawler FB30PXE-S2 3" Pro-X Elite System Stage 2

The Rock Krawler 3" Pro-X Elite System Stage 2 is the ultimate suspension upgrade for 6th Gen Ford Bronco owners seeking superior performance. Designed for those looking to push their Bronco to new limits, this system provides adjustable lift heights from 2" to 3" for optimal fitment with 35"-37" tires on factory fenders. Featuring a triangulated 4-link rear design for unmatched articulation and eliminating suspension bind, this system enhances both on-road ride comfort and off-road capabilities. With components such as RRD 2.625 all-aluminum remote reservoir coil-overs, adjustable billet aluminum A arms, and a rear triangulated 4-link conversion, it delivers superior handling, durability, and performance. Rock Krawler’s innovative multi-rate coil-over coils and FAST CD adjusters allow owners to precisely fine-tune their suspension for their driving preferences. This system offers a 30% increase in suspension travel and shock dampening, ensuring your Bronco is ready for any terrain.

Key Features

• Triangulated 4-link rear conversion eliminating rear track bar
• Adjustable lift height (2"-3") for 35"-37" tires with factory fenders
• 2.625 RRD remote reservoir coil-overs with FAST CD adjusters
• Multi-rate coil-over coils for improved handling and off-road performance
• Adjustable billet aluminum front upper A arms for precise caster/camber adjustments
• Adjustable solid alloy steel rear upper control arms and 7075 billet aluminum rear lower control arms
• Weld-on rear axle truss for added strength and durability
• Lifetime warranty coverage for peace of mind

Benefits

• Improved Articulation: The triangulated 4-link rear design allows for superior articulation without suspension bind, ideal for off-road enthusiasts.
• Enhanced Ride Quality: With adjustable coil-overs and multiple spring rates, you’ll experience a smooth on-road ride and improved off-road performance.
• Increased Suspension Travel: The system provides a 30% gain in wheel travel and shock dampening, maximizing off-road performance.
• Durable Construction: Components like anodized aluminum coil-overs, billet aluminum A arms, and powder-coated alloy steel control arms are built to withstand extreme conditions.
• Customization: The FAST CD adjusters and adjustable components allow fine-tuning for a tailored ride and handling experience.
• Lifetime Warranty: Backed by a lifetime warranty, offering long-term reliability and support.

Product Specs

• Lift Height: Adjustable from 2" to 3"
• Coil-overs: 2.625 RRD remote reservoir coil-overs
• Shocks: Pro-X Elite shocks with FAST CD adjusters
• Control Arms: Adjustable billet aluminum front upper A arms, adjustable solid alloy steel rear upper control arms, adjustable 7075 billet aluminum rear lower control arms
• Material: High-strength solid alloy steel, 7075 billet aluminum, anodized aluminum
• Axle Truss: Weld-on rear axle truss for additional strength
• Wheel Fitment: Recommended 4.5" backspacing for 35"-37" tires
• Tire Fitment: 35"-37" tires with OEM fender flares
• Additional Notes: Works on all models except Raptor Broncos; requires removal of axle brackets and welding of the rear axle truss; rear sway bar recommended if not originally equipped

Install Difficulty Level

The installation of the Rock Krawler 3" Pro-X Elite System Stage 2 is designed to be straightforward, but requires welding for the rear axle truss and removal of some axle brackets. Installation typically takes 8-10 hours with the right tools and expertise. For the best results, it’s recommended to have prior suspension experience or seek professional installation.

Vehicle Fitment

• Year Range: 2021+
• Make: Ford
• Model: Bronco
• Engine: Compatible with 2.3L and 2.7L EcoBoost engines
• Note: Not compatible with Raptor Bronco models

For any questions or to report product description inaccuracies, contact the MPT Performance experts at (407) 636-7077 or by email.
